UBHY DC

Tanks
UBHY DC

Tanks

Tank for DHW production from heat pump and solar integration + system side buffer tank

Residential

Floor standing

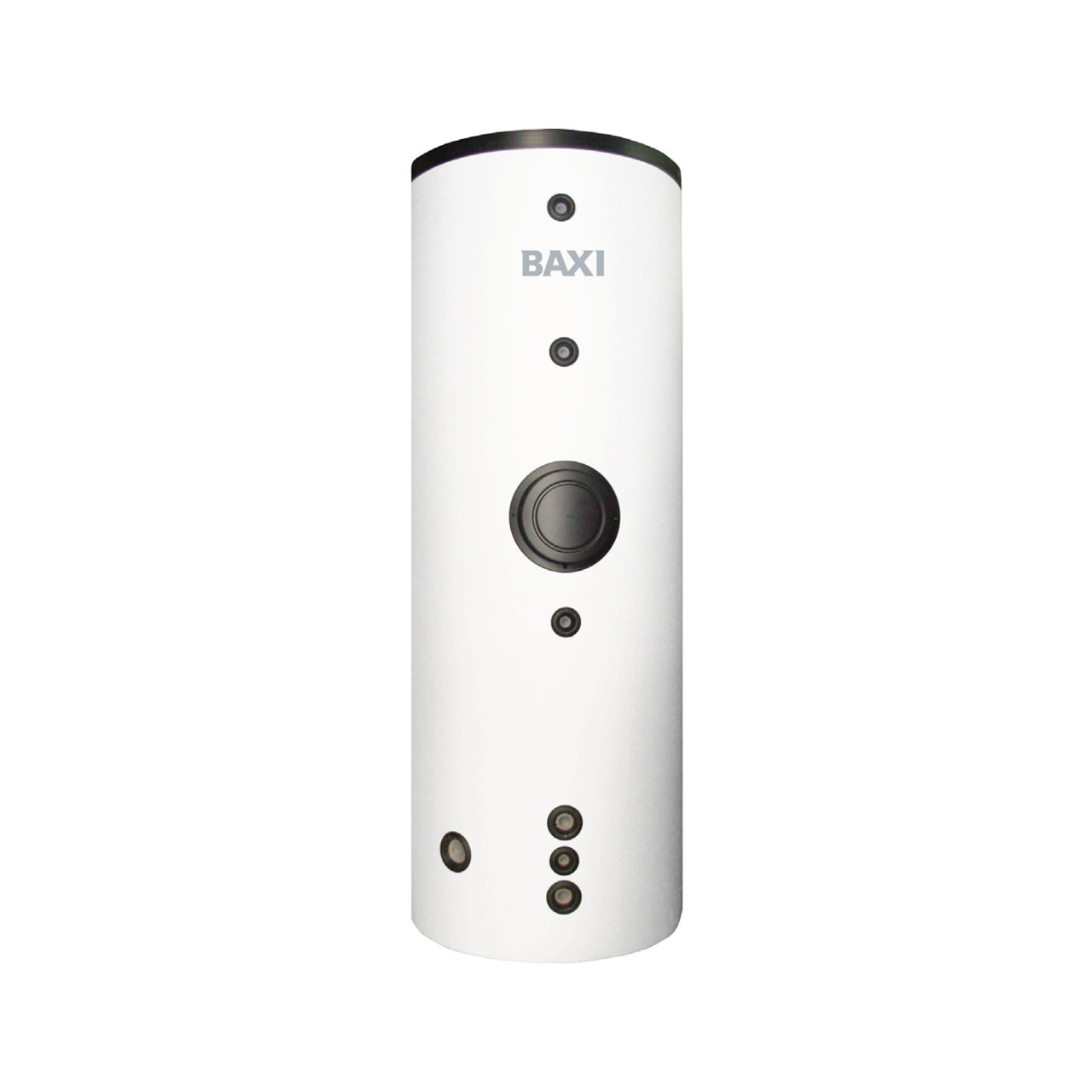

UBHY DC is designed for heat pump and solar integration for domestic hot water production.

The 80-litre system side buffer tank can store hot or cold water enabling to enjoy the maximum climatic comfort.

Find a Dealer

Characteristics

Models: 263, 450 liters
Double coil for heat pump and solar integration domestic hot water production.
80-litre system side buffer tank
Flexible, easy and clean installation
Enameled vitrified steel tanks and magnesium anode to ensure protection against corrosion
70-mm rigid injected polyurethane insulation

Features

Domestic hot water

This product allows the DHW production

Technical Specification

MODELS		UBHY 300 DC	UBHY 500 DC
Technical data
Capacity	l	263	450
Heat exchangers	n°	2	2
Coil exchange surface - upper	m²	2,8	14
Coil exchange surface - lower	m²	0,9	4,4
Coil heat exchange - upper (1)	kW	14	1,5
Coil heat exchange - lower (1)	kW	22	37
Dimensions (hxØ)	mm	1925 x 690	2040 x 790
Weight	kg	164,5	211,7

(1) Upper coil: inlet coil temperature 60°C, outlet 50°C; inlet tank temperature 10°C, outlet 45°C - according to DIN 4708 / Lower coil: inlet coil temperature 80°C, outlet 60°C; inlet tank temperature 10°C, outlet 45°C - according to DIN 4708
