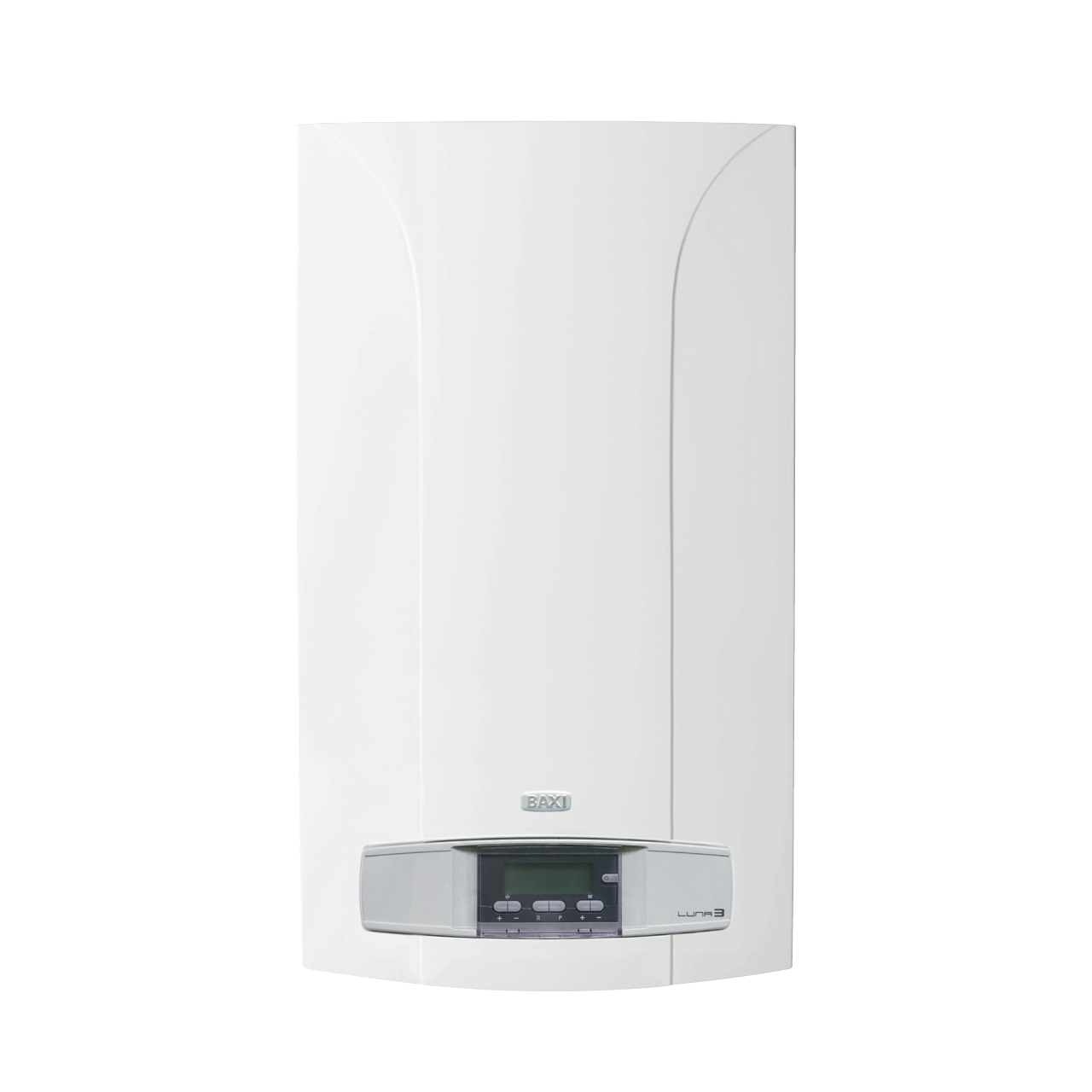

Luna3

Standard boilers
Luna3

Standard boilers

Heating only and combi - fanned and open flue

Residential

Wall Hung

The high-performance range of Luna3 gas boilers is appropriate for large spaces with associated high levels of DHW demand.

Ideal in detached houses with multi-zone systems, being able to control multiple temperature deliveries for maximum comfort. Two simultaneous heating temperature ranges: 30/85°C for radiators systems, and/or 30/45°C for floor heating systems.

A simple interface with large LCD display provides comprehensive information and setting options, including weekly scheduling in addition to advanced self-diagnostics.

The brass hydroblock ensures long term reliable performance.

Find a Dealer

Download Area

Characteristics

Models: 24 F, 28 F, 31 F, 24, 1.31 F
Brass hydroblock with flowmeter with turbine (combi models)
Steel burner
Enhanced primary exchanger made of copper pipes protected with anticorrosion coating
Enhanced stainless steel DHW heat exchanger
Low energy circulating pump with automatic air vent
Overheat limit thermostat for the water/flue exchanger
Hydraulic pressure switch to prevent boiler’s operating in event of low water
AFR system, patented by Baxi, that allows the efficiency optimization thanks to a perfect inlet air regulation (fanned flue models with dual flue system)

Technical Specification

MODELS		1.310 Fi	240 Fi	280 Fi	310 Fi	240 i
Heat input/output
Maximum heat input	kW	33,3	26,9	30,1	33,3	26,3
Minimum heat input	kW	11,9	10,6	11,9	11,9	10,6
Maximum heat output	kW	31	25	28	31	24
Minimum heat output	kW	10,4	9,3	10,4	10,4	9,3
Efficiency at maximum output	%	93,1	92,9	93,1	93,1	91,2
Heating circuit
Temperature range for heating circuit	°C	30/85 or 30/45	30/85 or 30/45	30/85 or 30/45	30/85 or 30/45	30/85 or 30/45
Water capacity of expansion vessel	l	10	8	10	10	8
Domestic water circuit
Temperature range for domestic water circuit	°C	-	35/60	35/60	35/60	35/60
DHW production ΔT 25°C	l/min	-	14,3	16	17,8	13,7
Specific flow according to EN 625	l/min	-	11,5	12,5	13,7	13,7
Combustion
Diameter of separate discharge pipes	mm	80/80	80/80	80/80	80/80	-
Diameter of coaxial discharge pipes	mm	60/100	60/100	60/100	60/100	-
Diameter of the flue tube	mm	-	-	-	-	120
Flue gas mass flow rate (max)	kg/sec	0,019	0,017	0,017	0,019	0,019
Flue gas mass flow rate (min)	kg/sec	0,018	0,017	0,017	0,018	0,017
Electrical characteristics
Power supply voltage	V	230	230	230	230	230
Power supply frequency	Hz	50	50	50	50	50
Dimensions
Humidity protection rating (EN 60529)	IP	X5D	X5D	X5D	X5D	X5D
Dimensions (height/width/depth)	mm	763x450x345	763x450x345	763x450x345	763x450x345	763x450x345
Gas type		Natural gas/LPG*	Natural gas/LPG*	Natural gas/LPG*	Natural gas/LPG*	Natural gas/LPG*
Net weight	kg	38	38	40	40	33
