Luna IN Plus

Condensing boilers
Luna IN Plus

Condensing boilers

Heating only and combi premium condensing boilers for outdoor installation

Residential

Outdoor solutions

Luna IN Plus is the range of premium condensing boilers for outdoor wall-hung and built-in installations, ideal in all situations where available space does not permit indoor installation.

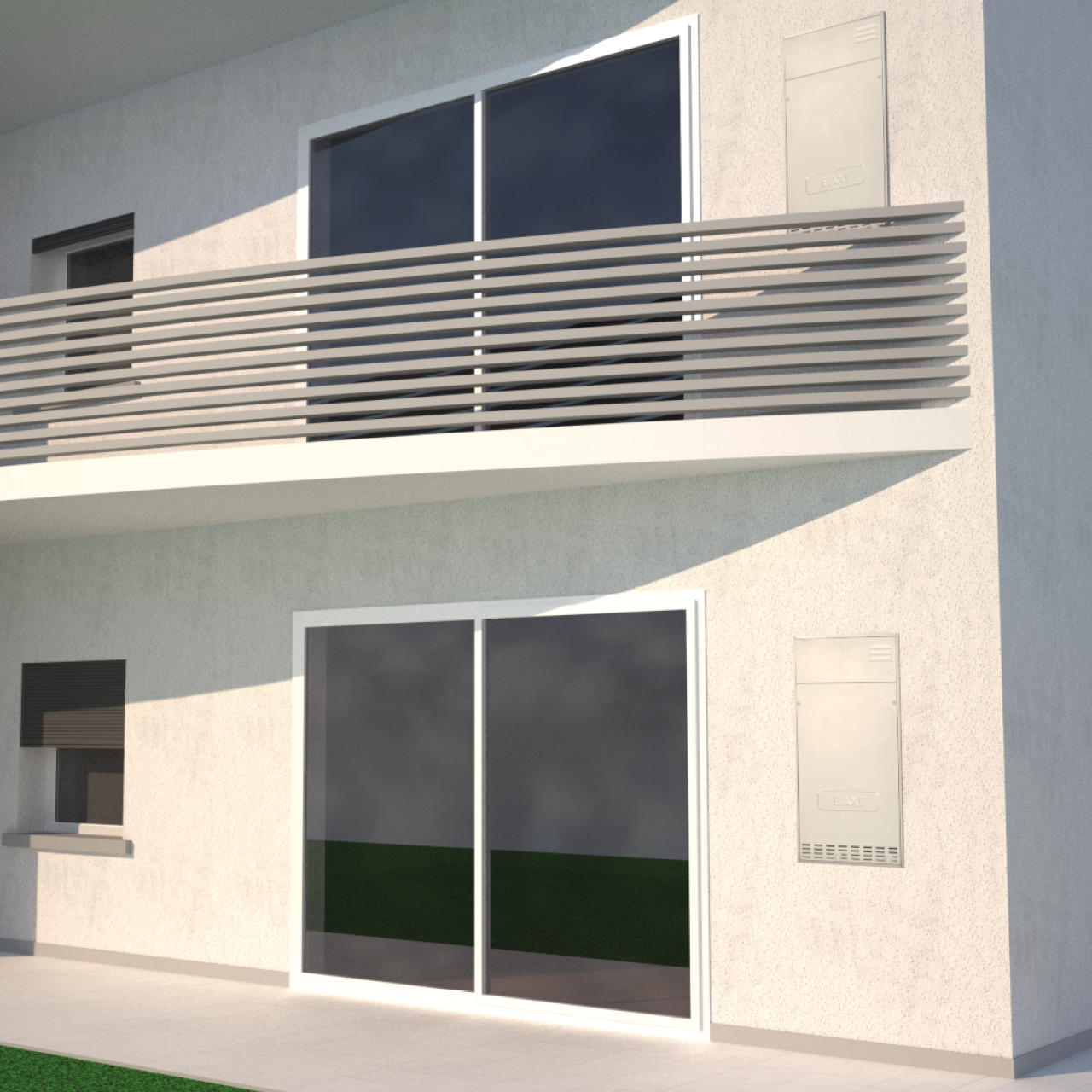

A built-in installation is possible (connection kit is supplied as standard) to save space on small balconies or if there are any aesthetic constraints, being almost invisible.

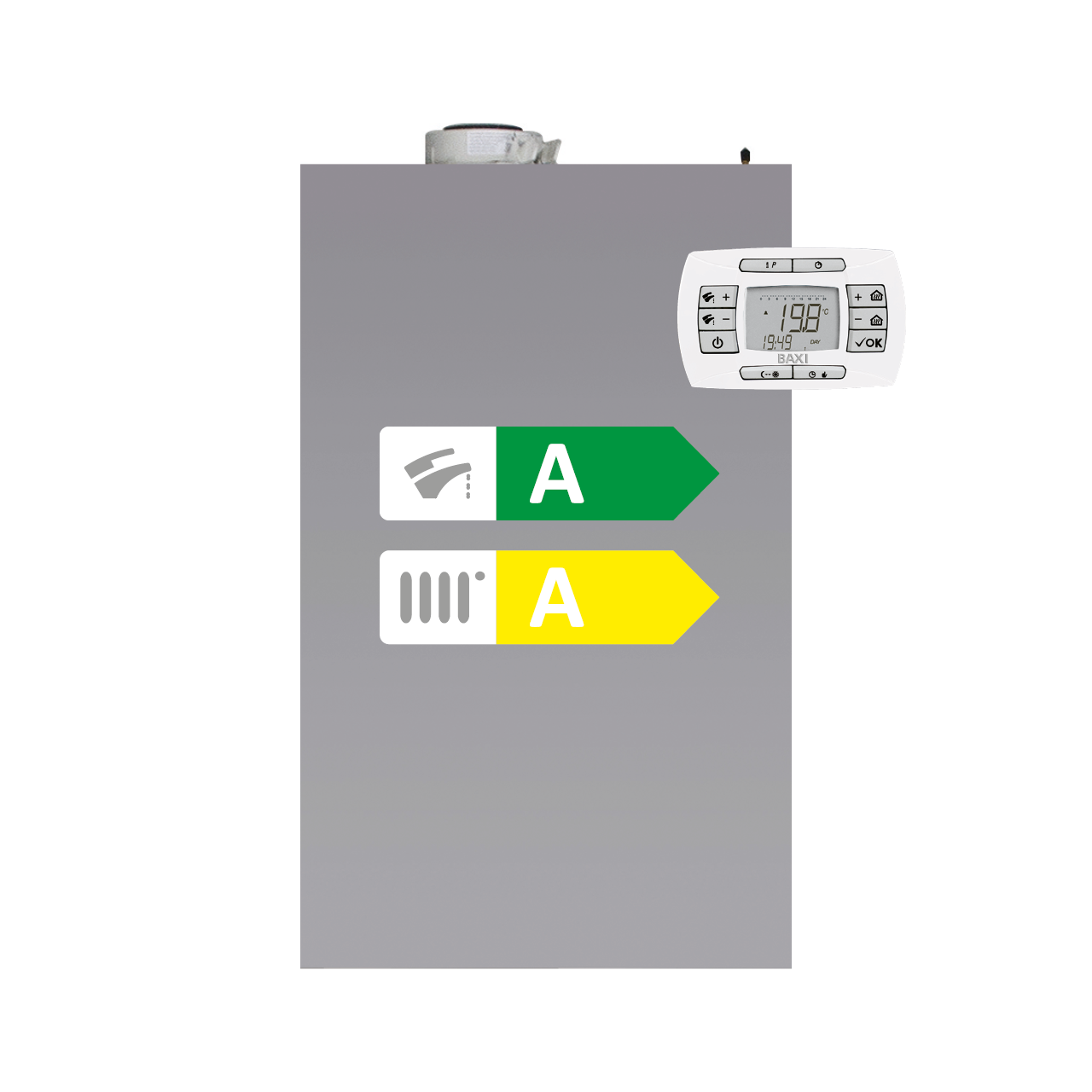

Remote digital control panel supplied with the boiler for an easy comfort management.

Thanks to the 1:7 modulation range, the boiler’s output varies in line with system demands, with resulting savings on gas consumption and energy costs.

Find a Dealer

Download Area

Characteristics

Models: 26, 30, 1.24
Digital remote control panel with LCD display supplied as standard
Multi-zones system connection
Built-in installation: compact dimension (770x470x238 mm) fitting most existing retaining cases
Connection pipes kit for built-in installation supplied as standard
Automatic filling system
Electrogalvanized cover for outdoor use
Minimum working temperature: -15°C, anti-frost function and grade of protection IPX5D
Outdoor wall hung installation in partially protected places and open-air wall-hung installation option
Integration with solar system option

Features

Digital Ready

It can be connected to BaxiMAGO, the WI-FI smart modulating thermostat, and Baxi service App. You can have your boiler always under control

Hybrid Ready

It facilitates the integration of other heating sources, such as heat pumps and solar thermal, simplifying the climate management of your home

Gas Adaptive Control

It automatically detects the kind of gas and continuously adjusts the gas-to-air ratio for the highest quality combustion and savings

1:7 modulation

Modulation up to 1:7 reduces on-off cycles for improved efficiency and savings

Show Less

Technical Specification

MODELS		1.24	26	30
ErP data
Rated heat output	kW	24	20	24
Useful heat output at rated heat output and high temperature regime(2) P4	kW	24	20	24
Useful heat output at 30% of rated heat output and low temperature setting(1) P1	kW	8	6,7	8,1
Space heating – Seasonal energy efficiency ƞs	%	93	94	94
Useful efficiency at rated heat output and high temperature setting(2) ƞ4	%	87,9	88	87,9
Useful efficiency at 30% of rated heat output and low temperature setting(1) ƞ1	%	98	98,9	98,8
Sound power level, indoors LWA	dB	52	49	48
Declared load profile		-	XL	XL
Heat input/output
Rated heat input (Qn) for domestic hot water	kW	-	26,8	30
Rated heat input (Qn) for heating	kW	24,7	20,6	24,7
Rated heat output (Pn) for domestic hot water	kW	-	26	29
Rated heat output (Pn) 80/60 °C for heating	kW	24	20	24
Rated heat output (Pn) 50/30 °C for heating	kW	26,1	21,8	26
Heating circuit
Temperature range for heating circuit	°C	25/80	25/80	25/80
Water capacity of expansion vessel	l	8	8	8
Domestic water circuit
Temperature range for domestic water circuit	°C	35/60	35/60	35/60
Domestic water production with ΔT = 25 °C	l/min	-	14,9	16,6
Domestic water production with ΔT = 35 °C	l/min	-	10,6	11,9
Combustion
Diameter of separate discharge pipes	mm	80/80	80/80	80/80
Diameter of coaxial discharge pipes	mm	60/100	60/100	60/100
Nitrogen oxide emissions NOx	mg/kWh	16	15	17
Flue gas mass flow rate (max)	kg/sec	0,012	0,013	0,014
Flue gas mass flow rate (min)	kg/sec	0,002	0,002	0,002
Electrical characteristics
Power supply voltage	V	230	230	230
Power supply frequency	Hz	50	50	50
Rated electric power	W	85	87	104
Dimensions
Humidity protection rating (EN 60529)	IP	X5D	X5D	X5D
Net weight	kg	28,5	32,5	32,5
Dimensions (height/width/depth)	mm	770/470/238 - 1170/600/240 (case)	770/470/238 - 1170/600/240 (case)	770/470/238 - 1170/600/240 (case)
