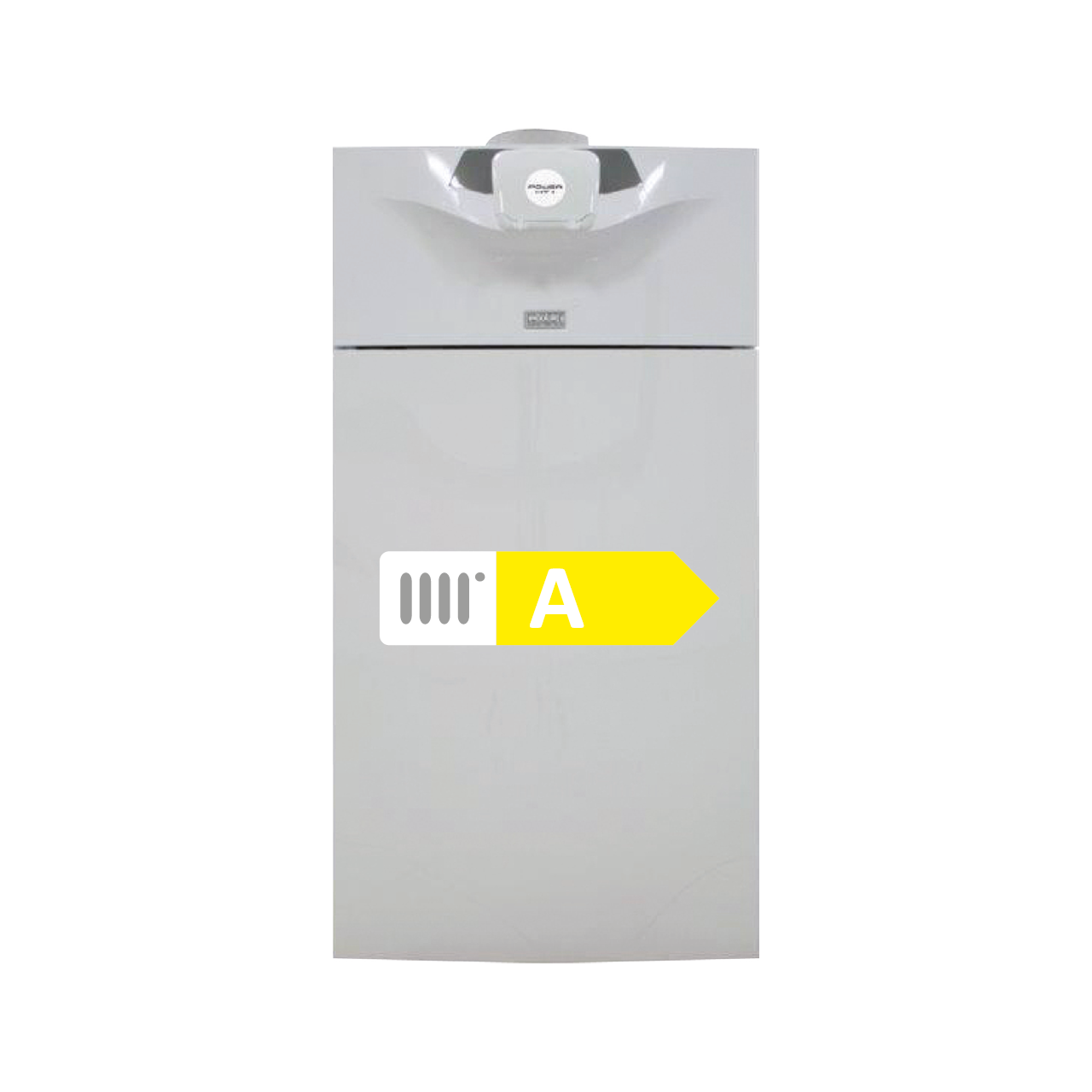

Power HT+

High output gas condensing systems

Single or cascade centralized heating systems installations

Commercial

Floor standing

The range of Power HT+ consists of floor-standing commercial condensing boilers, with output between 50 and 250 kW (50/30°C).

Power HT+ are heating only boilers for centralized systems with the possibility to be connected to a domestic hot water tank.

Cascade option for greater heating demand, up to 6 boilers.

Find a Dealer

Download Area

Characteristics

Models: 1.50, 1.70, 1.90, 1.110, 1.130, 1.150, 1.200, 1.250
Modulation up to 1:9 (1:5 models from 130 to 250 kW) reduces on-off cycles for improved efficiency and energy savings
Low water content heat exchanger for a rapid response to system heating demand
Large back-lit display
Stainless steel burner (metalic fiber for 1.110 model)
Adjustable fan speed and insulation for silent operation
Premixi air-gas unit ensures that the burner constantly has an optimal air/gas ratio, for better efficiency and lower energy consumption
Up to 6 boilers in cascade

Technical Specification

MODELS		1.50	1.70	1.90	1.110	1.130	1.150	1.200	1.250
Heat input/output
Maximum heat input (heating)	kW	46,3	66,9	87,4	104,9	123,8	143	191	240
Minimum heat output	kW	5,1	7,4	9,7	11,7	24,8	28,6	31,8	40
Useful heat output at rated heat output and high temperature regime(2) P4	kW	45	65	85	102	121,5	140,3	185,9	232,8
Minimum heat output (80/60°C)	kW	5	7,2	9,4	11,4	24,3	28,1	31	38,8
Maximum heat output (50/30°C)	kW	48,6	70,2	91,8	110,2	130,6	150,9	200	250
Minimum heat output (50/30°C)	kW	5,4	7,8	10,2	12,3	26,2	30,2	33,1	41,7
Useful heat output at 30% of rated heat output and low temperature setting(1) P1	kW	15	21,7	28,3	34	40,4	46,6	36	46
Seasonal space heating energy efficiency class***		A	A	-	-	-	-	-	-
Useful efficiency at rated heat output and high temperature setting(2) ƞ4	%	87,7	87,6	87,7	87,6	88,4	88,4	87,7	87,4
Useful efficiency at 30% of rated heat output and low temperature setting(1) ƞ1	%	97,7	97,4	97,5	97,4	97,8	97,8	98,3	98,3
Space heating – Seasonal energy efficiency ƞs	%	93	93	93	93	93	93	94	94
Heating circuit
Maximum pressure heating circuit	bar	4	4	4	4	6	6	6	6
Maximum inlet temperature heating circuit	°C	85	85	85	85	85	85	85	85
Temperature range for heating circuit	°C	25-80	25-80	25-80	25-80	25-80	25-80	25-80	25-80
Water content	l	2,81	4,98	8,34	9,83	10	11	13	15
Combustion
Diameter of separate discharge pipes	mm	80-80	80-80	110-110	110-110	110-110	110-110	160-160	160-160
Diameter of coaxial discharge pipes	mm	80-125	80-125	110-160	110-160	110-160	110-160	-	-
Nitrogen oxide emissions NOx	mg/kWh	27	31	36	22	17	23	37	39
Flue gas mass flow rate (max)	kg/s	0,075	0,111	0,144	0,169	0,201	0,230	0,322	0,411
Flue gas mass flow rate (min)	kg/s	0,007	0,014	0,018	0,018	0,043	0,050	0,054	0,069
Maximum flue temperature	°C	92	76	70	70	70	70	80	80
Gas type		Natural Gas/LPG	Natural Gas/LPG	Natural Gas/LPG	Natural Gas/LPG	Natural Gas/LPG	Natural Gas/LPG	Natural Gas/LPG	Natural Gas/LPG
Electrical characteristics
Rated power supply	W	100	117	146	185	187	283	242	369
Auxiliary electrical power consumption - Full load elmax	W	100	117	146	185	187	283	242	369
Auxiliary electrical power - Partial load elmin	W	23	24	24	24	51	52	47	48
Auxiliary electrical power - Stand-by PSB	W	3	3	3	3	3	4	4	4
Power supply voltage	V	230	230	230	230	230	230	230	230
Power supply frequency	Hz	50	50	50	50	50	50	50	50
Dimensions
Sound power level, indoor LWA	dB	61	64	-	-	-	-	-	-
Humidity protection rating (EN 60529)	IP	X1B	X1B	X1B	X1B	X1B	X1B	X1B	X1B
Net weight	kg	60	70	104	109	126	132	212	232
Dimensions (height/width/depth)	mm	900x600x681	900x600x681	1221x600x681	1221x600x681	1221x600x681	1221x600x681	1238x600x1410	1238x600x1410

(1) Low temperature: return temperature (at boiler inlet) for condensing boilers 30°C, for low temperature boilers 37°C and for other heaters 50°C.
(2) High temperature setting means 60 °C return temperature at boiler inlet and 80 °C flow temperature at boiler outlet.
*** Products with nominal output >70 kW are not subjected to energy labelling according to ErP regulation
