STS+

Solar collectors with cylinder - natural draft

Residential

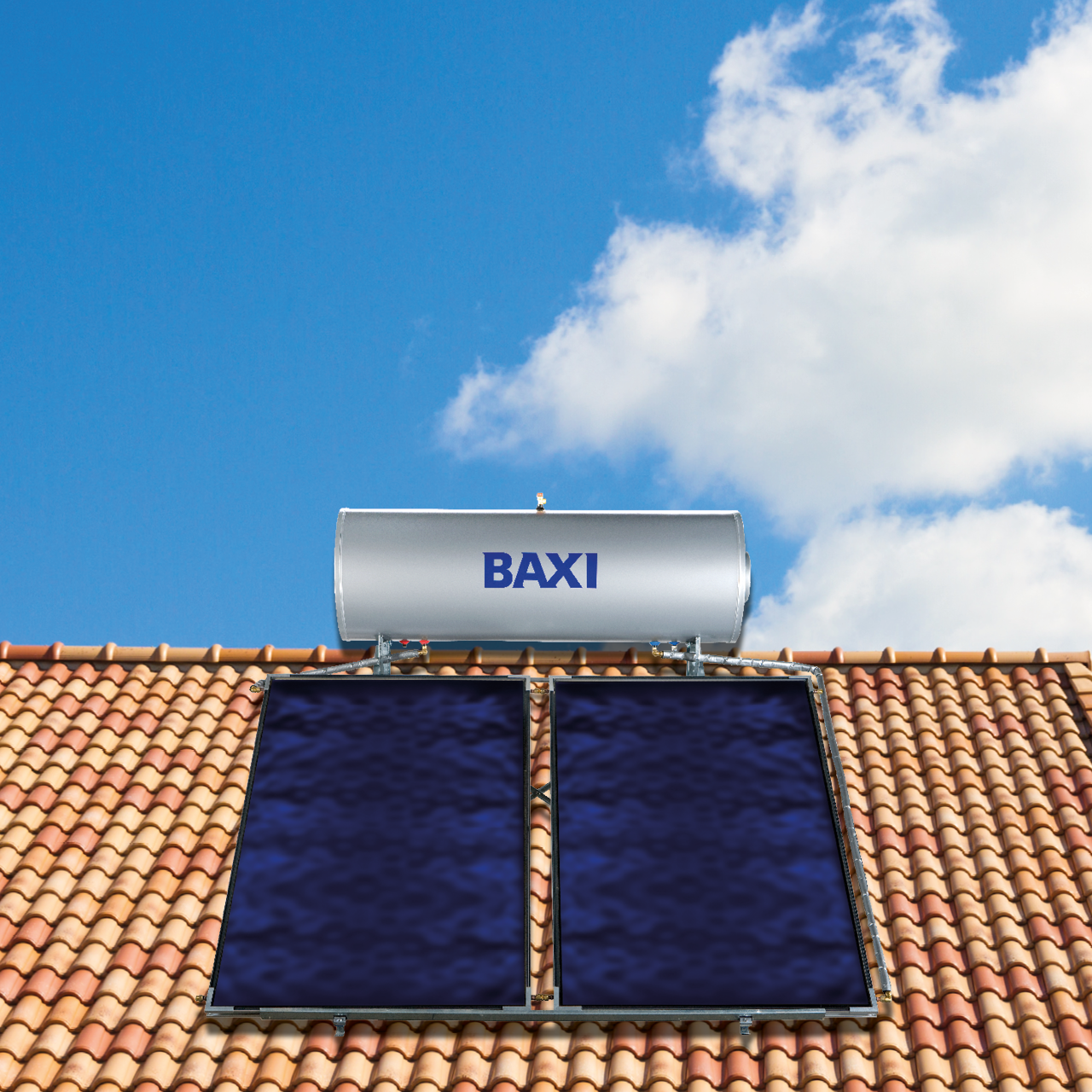

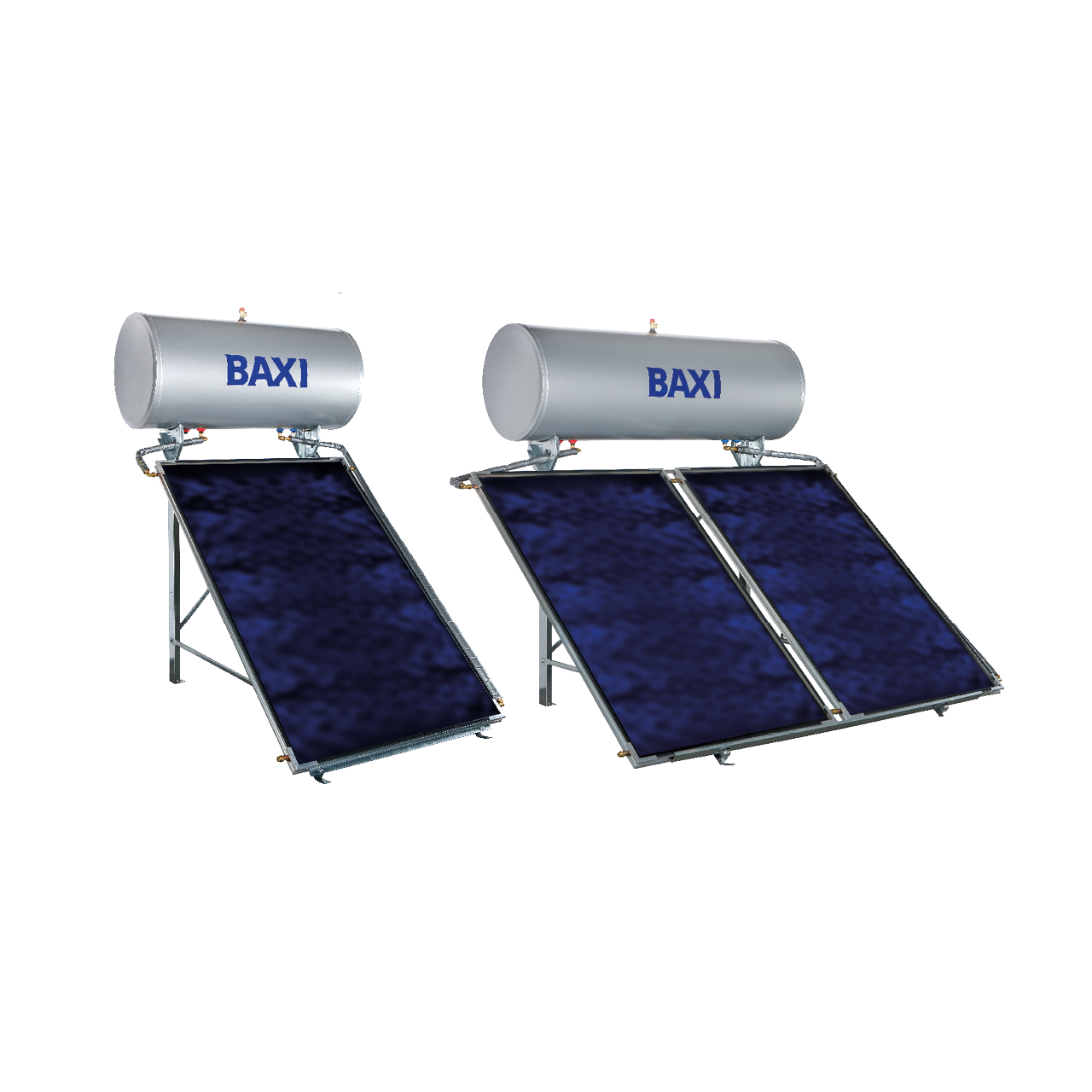

A-frame and on-roof installation

STS+ solar collectors exploit solar energy for domestic hot water production.


STS+ is a range of vertical natural-draft solar collectors, ideal for combination with other Baxi productsfor the creation of highly energy efficient integrated systems.


STS+ is supplied with a 150, 200 or 300-litre storage tank and can be installed either on a flat or pitched roof.

Find a Dealer
Download Area
Characteristics

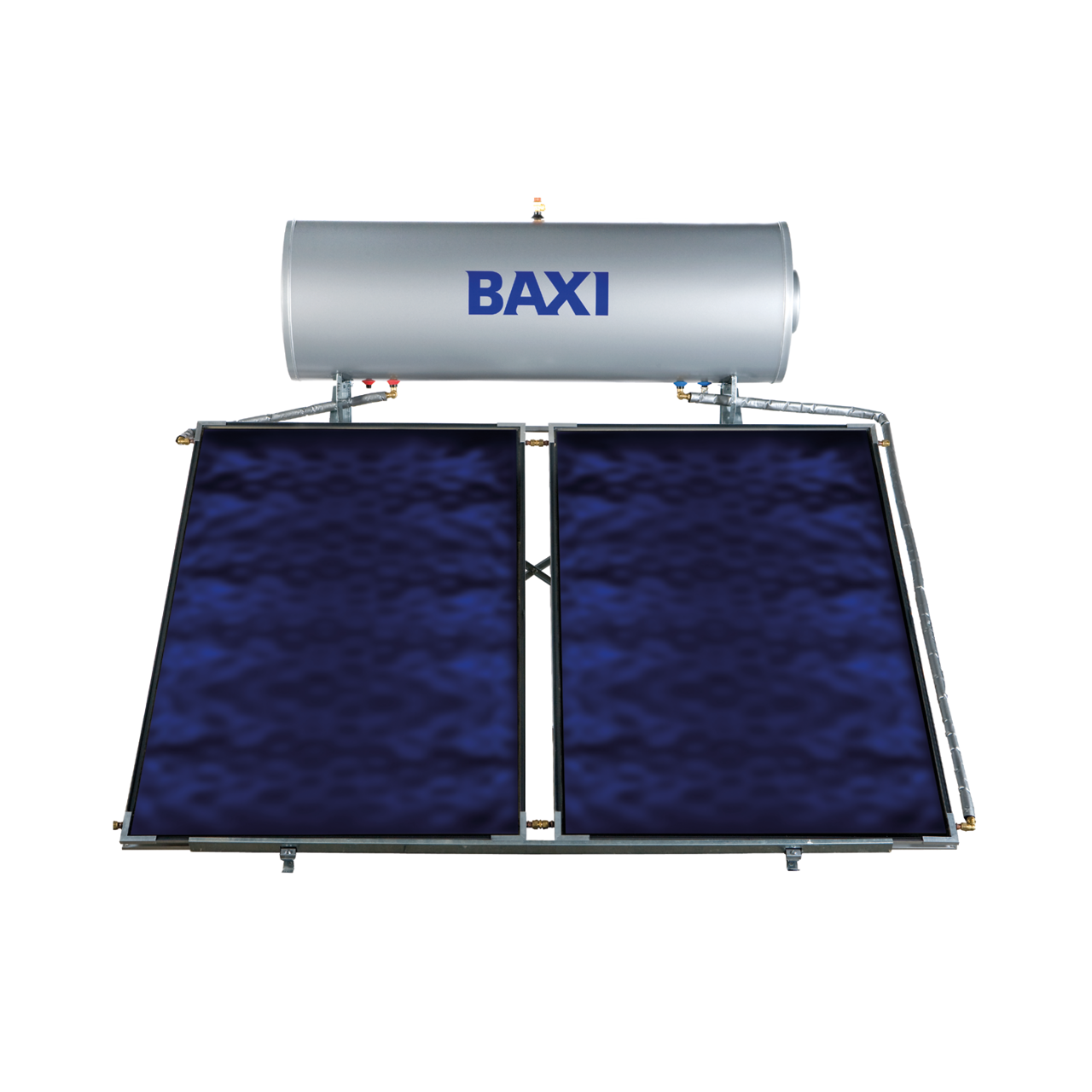

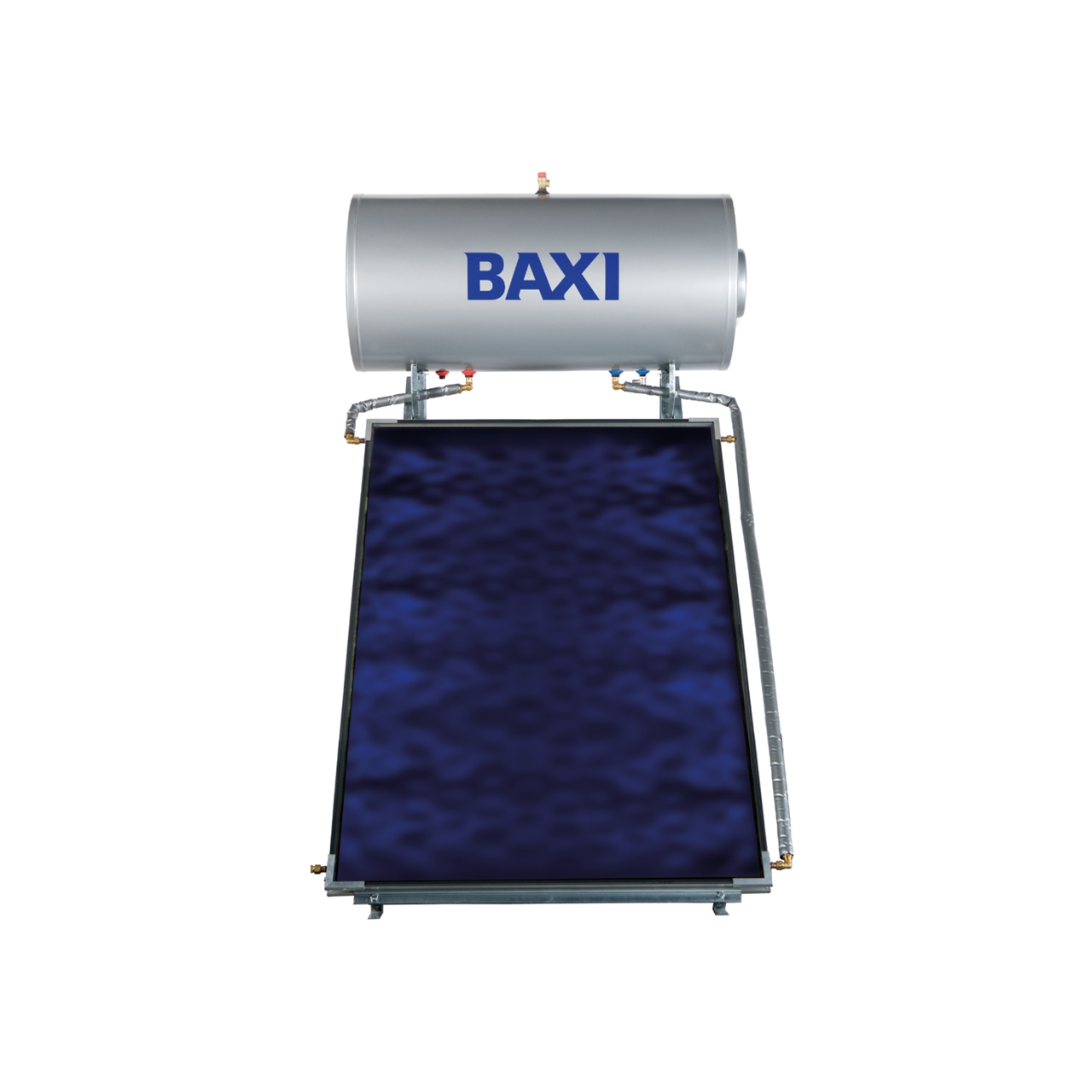

  • Models: 2, 2,5, 2x2, 2x2,5 m² surface
  • Pre-assembled natural circulation solar systems for DHW production made of solar collector "Mediterraneo Slim", solar cylinder, universal frame and hydraulic connection kit
  • Ease of installation and maintenance: "Mediterraneo Slim" is the thinnest panel on the market (46 mm) and extremely light weight (only 26 kg for STS+ 200 and 32 kg for STS+ 250)
  • Hydraulic connections with insulated copper pipes and compression fittings connections to the cylinder included
  • 150, 200 or 300-litre enamelled steel cylinder included

Features

Keymark

The product follows the European Standards, and it is marked with Keymark

    Domestic hot water

    This product allows the DHW production

      Technical Specification

      MODELSSTS+ 150 2.0STS+ 150 2.5STS+ 200 2.0STS+ 200 2.5STS+ 300 2.0STS+ 300 2.5
      Installation
      TypeA-frame, on roofA-frame, on roofA-frame, on roofA-frame, on roofA-frame, on roofA-frame, on roof
      N. of collectors111122
      Panel(s) and cylinder
      Single collector external dimensions (h x w x d)mm1753 x 1151 x 462187 x 1151 x 461753 x 1151 x 462187 x 1151 x 461753 x 1151 x 462187 x 1151 x 46
      Aperture aream²1,922,41,922,43,844,8
      Collector capacityl1,41,61,41,62,83,2
      Total primary circuit capacityl9,69,810,610,822,823,2
      Cylinder dimensions (Ø x w)mm500 x 1309500 x 1309580 x 1309580 x 1309580 x 2060580 x 2060
      Cylinder capacityl157,9157,9196,8196,8325,5325,5
      Performance
      Maximum working pressurebar8,58,58,58,58,58,5
      ŋo - Efficiency (with reference to the absorber surface)%
      α Heat lossesW/m²K3,863,923,923,863,923,92
      System empty weightkg107107115115190192

      Download Area

      Leaflet

      Leaflet

      Product Documentation

      No documentation available.

      Get more details and information about Baxi products

      Find a Dealer

      Related Products

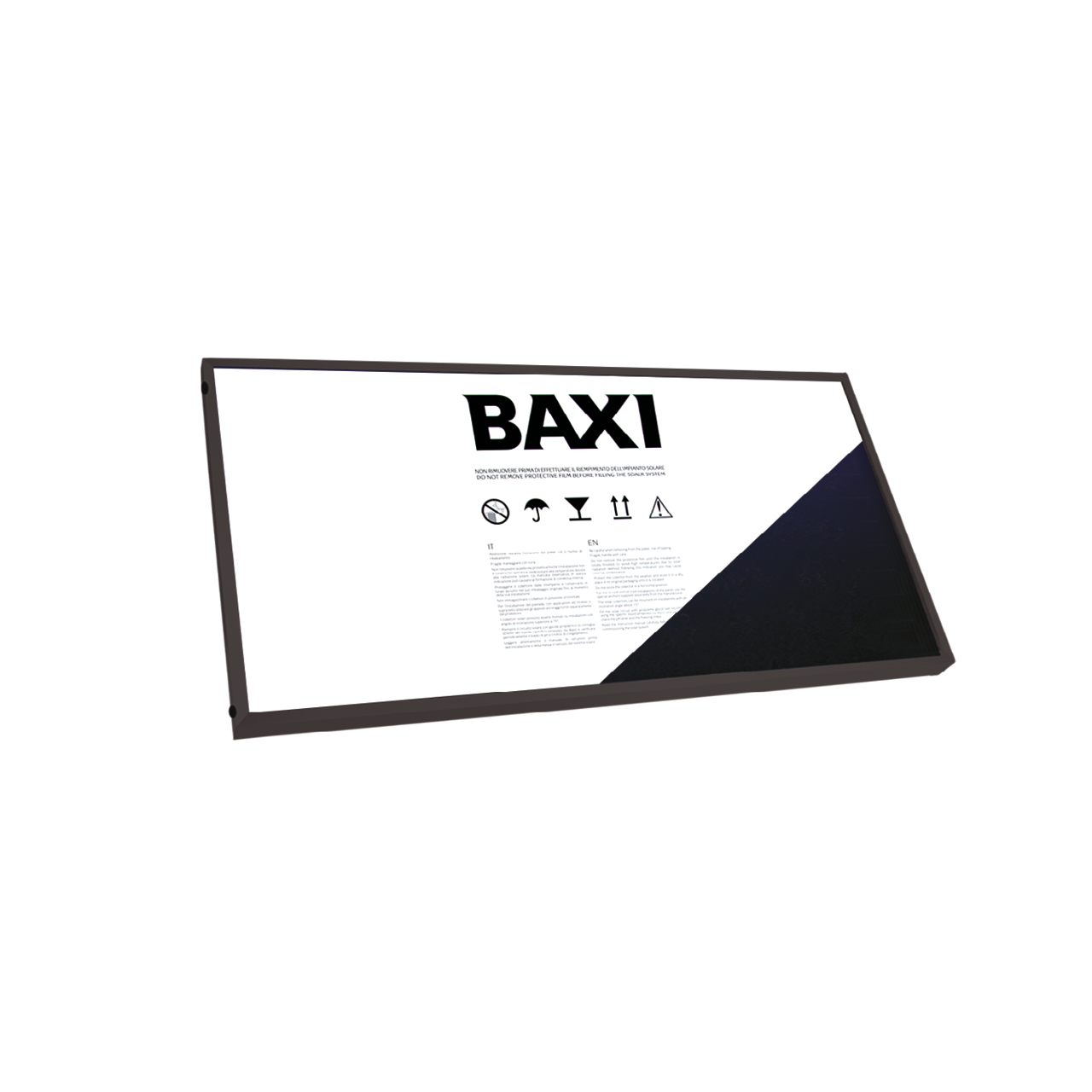

      SOL
