Floor/ceiling fan coil terminals for heating/cooling

Residential

Floor/Ceiling

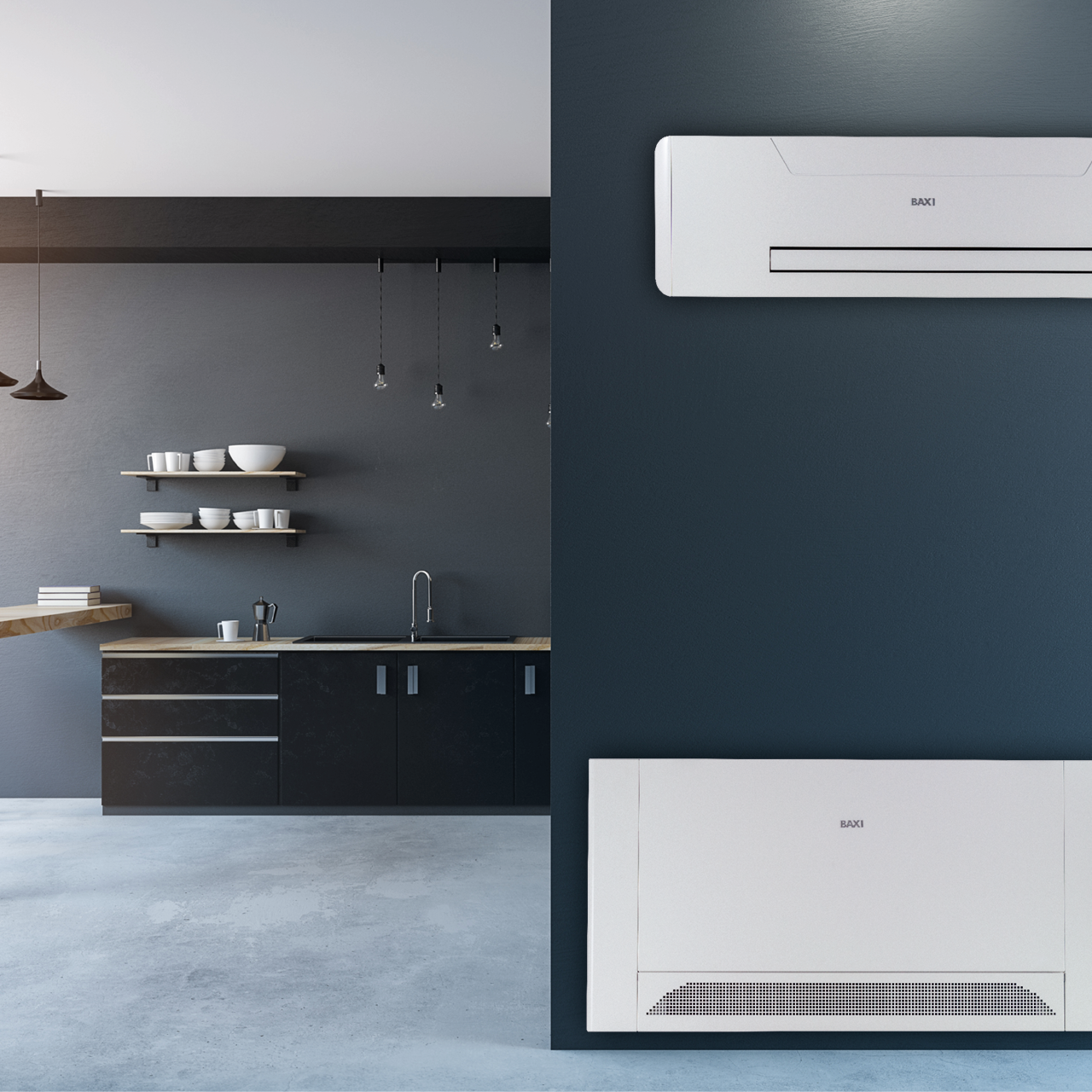

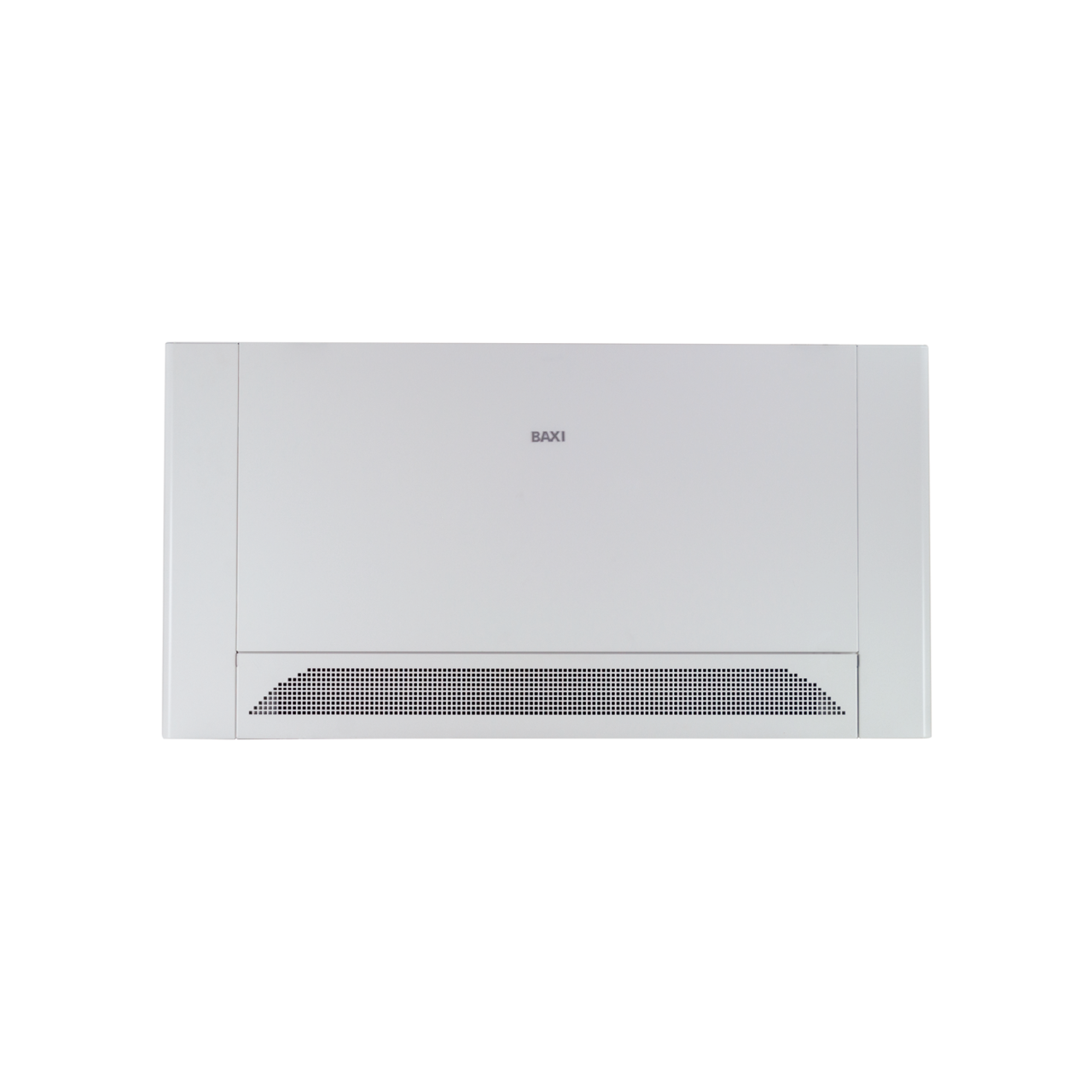

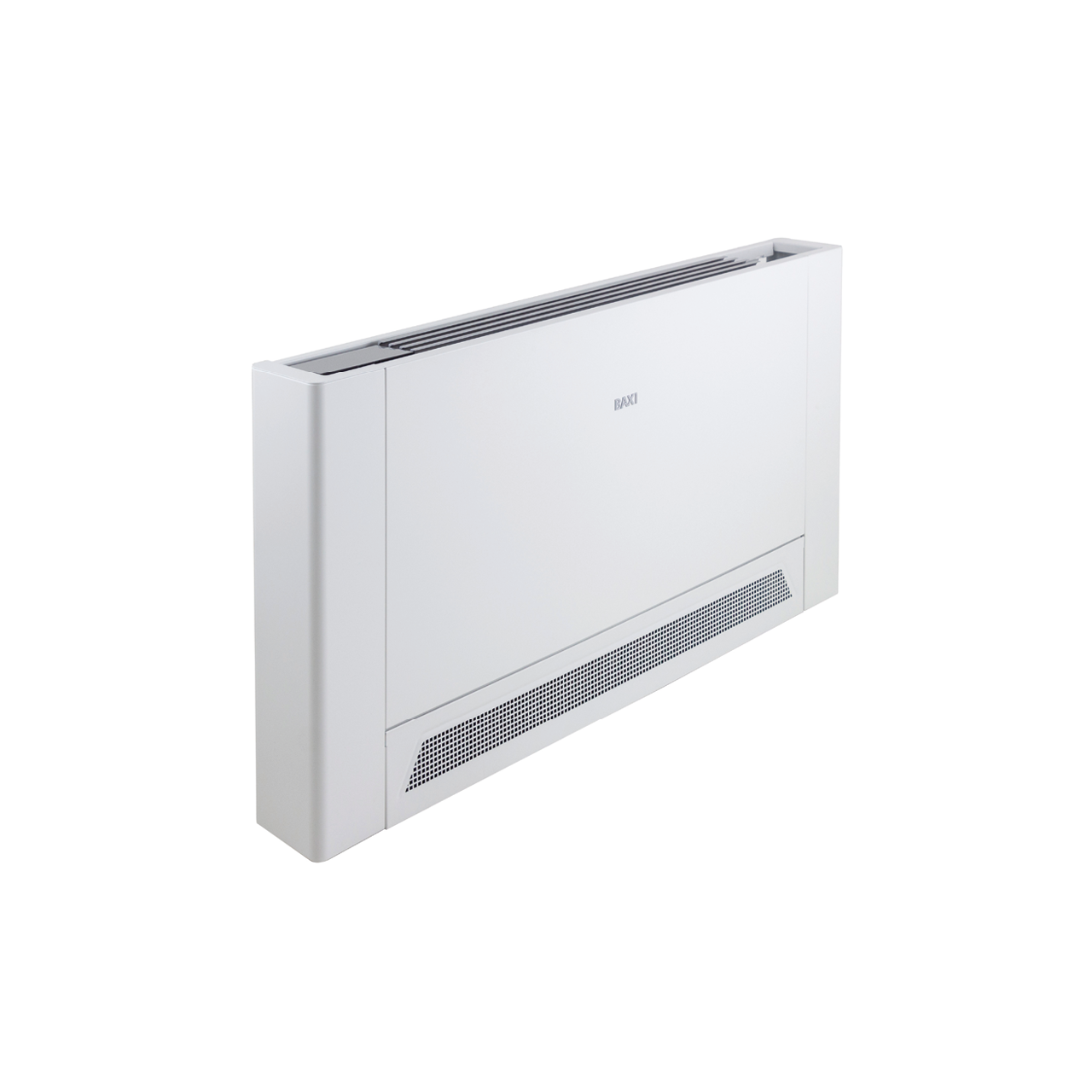

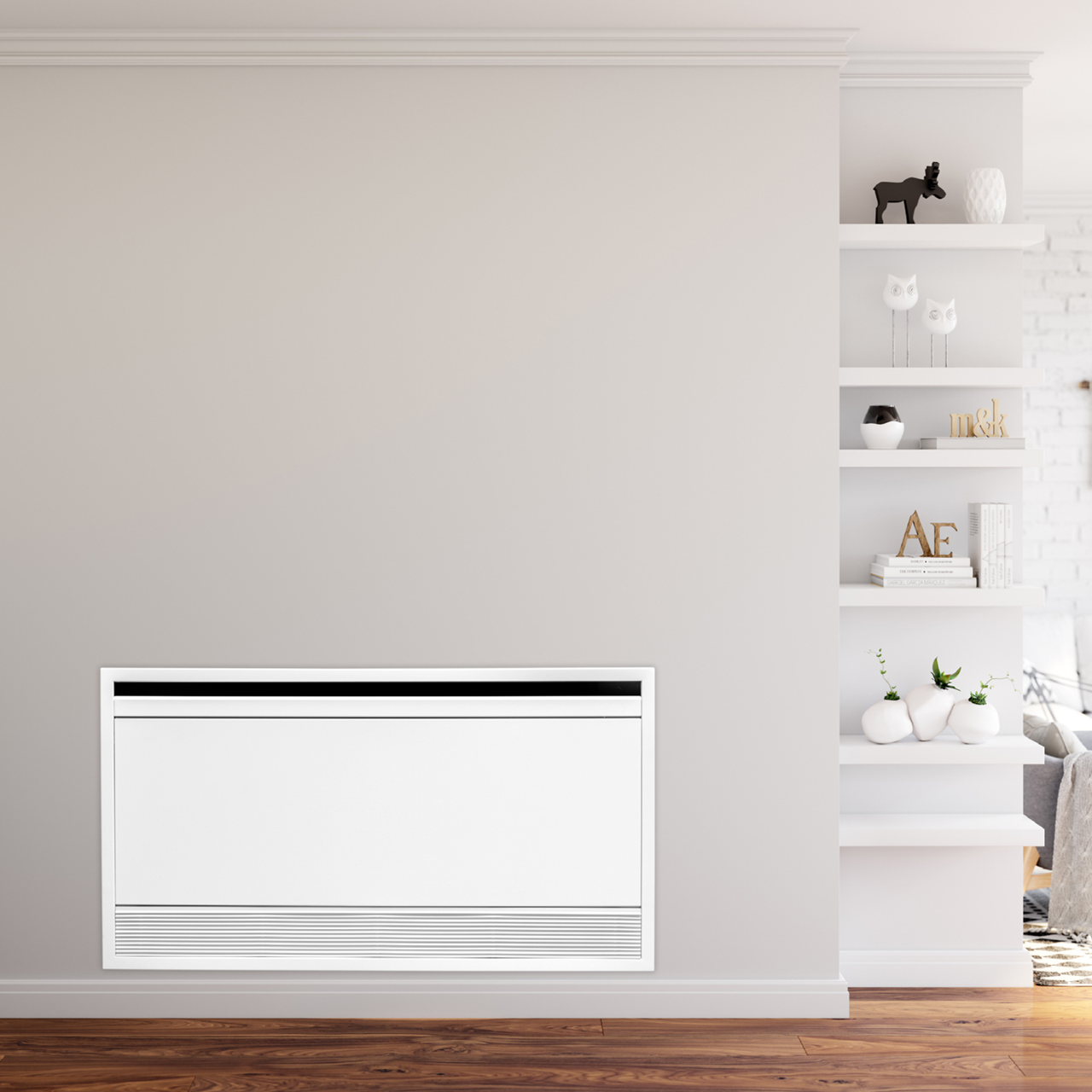

A floor/ceiling fan coil with a neat and innovative design, suitable for installation in all domestic environments thanks to a depth of just 129 mm: for this reason it can be wall-recessed or inserted in a false ceiling without impacting the available space.

The air flow is modulated and therefore the sound level is imperceptible with a total absence of drafts, especially in the radiant version (R).

Find a Dealer

Characteristics

Models: 146, 294, 438, 567, 663 air flow m³/h

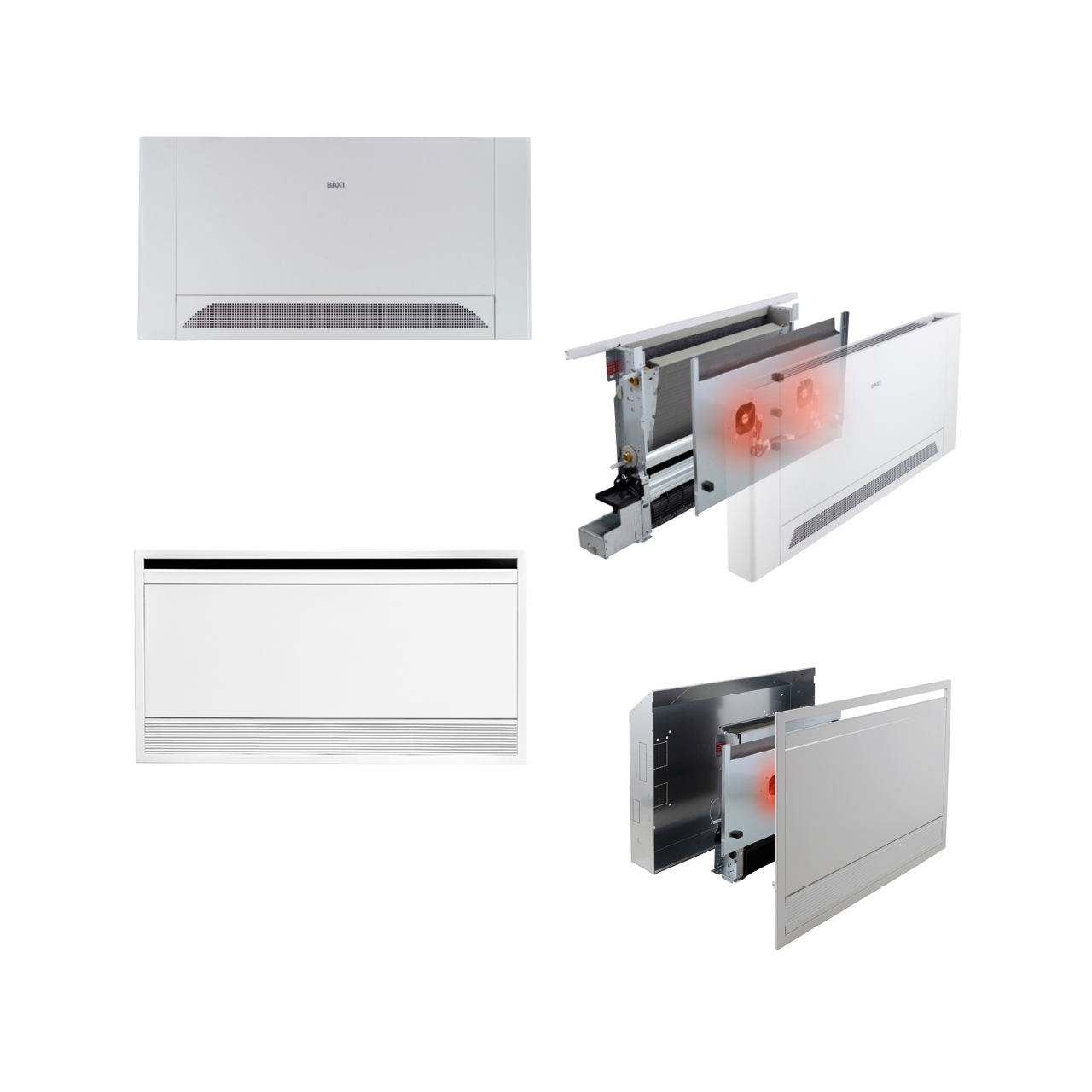

Available in 4 versions: floor, ceiling, built-in, floor/recessed with radiant effect
Just 129 mm depth
Low noise level
Low energy consumption and modulated air flow thanks to DC inverter motor fans
Modulating-speed smart touch panel (accessory available on request)
Hydraulic connections can be configured right or left

Features

Heating and cooling

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product

Technical Specification

MODELS		200	400	600	800	1000
Cooling performance (A27°C; W7°C)
Cooling capacity (1)	kW	0,91	2,12	2,81	3,3	3,71
Sensible performance in cooling (1)	kW	0,73	1,72	2,11	2,71	2,9
Water flow rate (1)	l/h	157	365	483	568	638
Heating performance (A20°C; W45°C)
Heating output (2)	kW	9,1	9,2	19,1	21,2	23,3
Water flow rate (2)	l/h	1,02	2,21	3,02	3,81	4,32
Water pressure drop (2)	kPa	175	380	519	655	743
Hydraulic data
Battery water content	l	9,1	9,2	19,1	21,2	23,3
Maximum operating pressure	bar	0,47	0,8	1,13	1,46	1,8
Hydraulic connections	inches	10	10	10	10	10
Aeraulic data
Maximum air flow rate (3)	m³/h	Eurokonus 3/4’’	Eurokonus 3/4’’	Eurokonus 3/4’’	Eurokonus 3/4’’	Eurokonus 3/4’’
Air flow rate at medium speed (AUTO mode)	m³/h	146	294	438	567	663
Air flow rate at minimum ventilation speed	m³/h	90	210	318	410	479
Maximum static pressure available	Pa	49	118	180	247	262
Electrical data
Supply voltage	V/ph/Hz	10	10	13	13	13
Electrical power consumption at max speed	W	230/1/50	230/1/50	230/1/50	230/1/50	230/1/50
Absorbed current at max allowed conditions	A	11	19	20	29	29
Electrical power consumption at min speed	W	0,11	0,16	0,18	0,26	0,26
Sound data
Sound power at max air flow	dB(A)	5	4	6	5	5
Sound pressure at max air flow rate (4)	dB(A)	51	53	54	55	57
Sound pressure at average air flow rate (4)	dB(A)	41	42	44	46	47
Sound pressure at minimum air flow rate (4)	dB(A)	33	34	34	35	38
Dimensions
Dimensions (hxwxd)	mm	579 x 735 x 129	579 x 935 x 129	579 x 1135 x 129	579 x 1336 x 129	579 x 1536 x 129
Weight	kg	17	20	23	26	29

(1) Water temperature 7/12°C, air temperature 27°C BS and 19°C BU according to EN 1397
(2) Water temperature 40/45°C, air temperature 20°C BS and 15°C BU according to EN 1397
(3) Air flow rate measured with clean filters
(4) Sound pressure measured at a distance of 1 meter according to ISO7779
