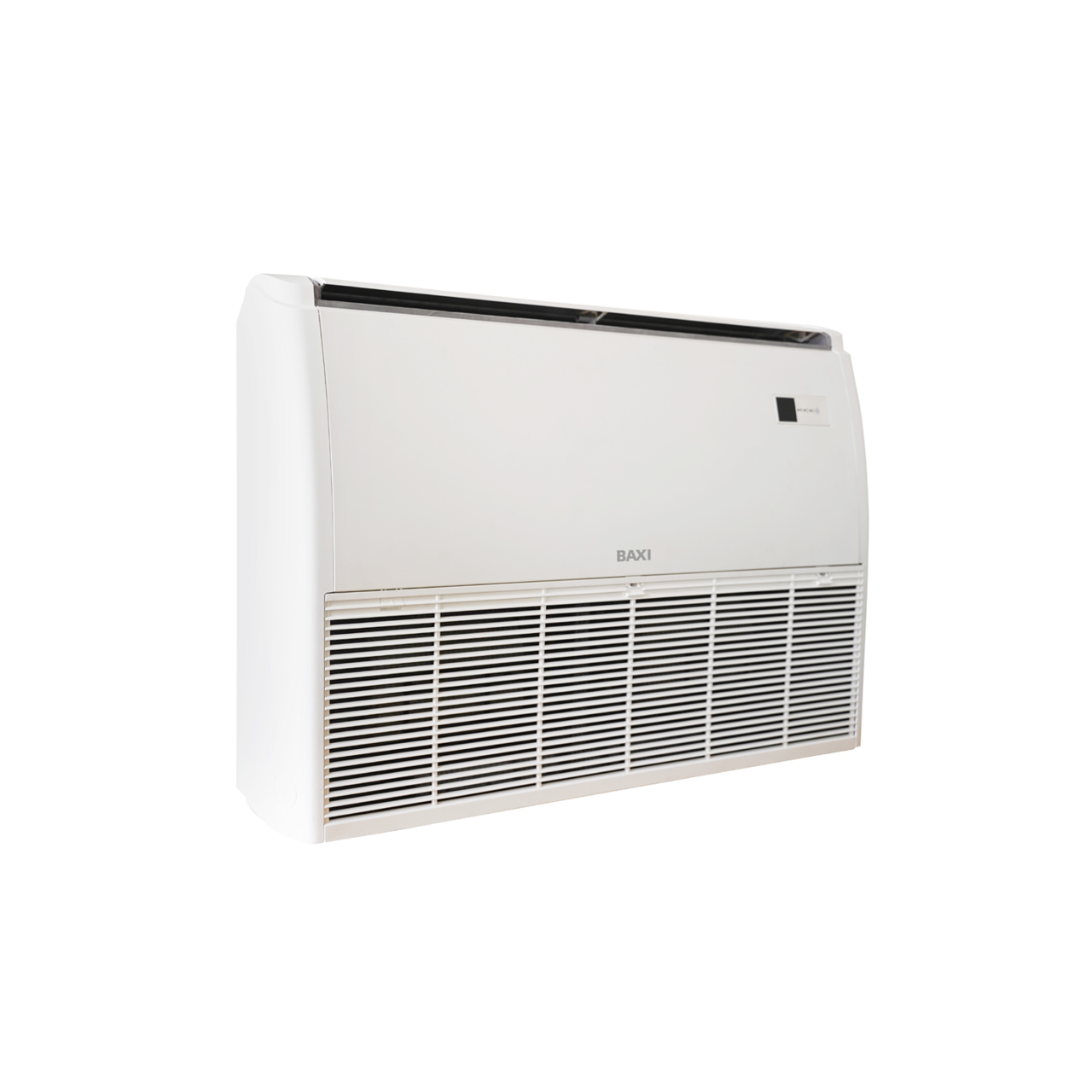

Floor/Ceiling mono-split

Air conditioning

Floor/ceiling air conditioners

Residential / Commercial

Floor/Ceiling

Mono Split floor/ceiling units have an elegant and compact design with a white matt finish, making them suitable for fitting in any room.

Floor/ceiling air conditioners can work with primary air.

The condensate drain is adjustable (right or left side) for maximum versatility of installation.

The units can operate with 10% primary air for a healthier environment.

Features

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product

MODELS		24.000 Btu/h	36.000 Btu/h	48.000 Btu/h	60.000 Btu/h
Erp Data
SEER		6,2	6,1
SCOP		4	4
Rated cooling capacity	kW	7,03	10,55	14	16
Rated heating capacity	kW	7,62	11,15	16	17
Dimensions
Dimensions (w x h x d) - OUTDOOR Unit	mm	900 x 700 x 350	970 x 805 x 395	940 x 1325 x 370	940 x 1325 x 370
Weight - OUTDOOR Unit	kg	43	72	92	92
Sound power level - OUTDOOR Unit	dB(A)	68	66	70	70
Dimensions (w x h x d) -INDOOR unit	mm	1280 x 690 x 235	1600 x 690 x 235	1600 x 690 x 235	1600 x 690 x 235
Weight - INDOOR unit	kg	34	41	41	41
Sound power level - INDOOR unit	dB(A)	52	63	61	59
