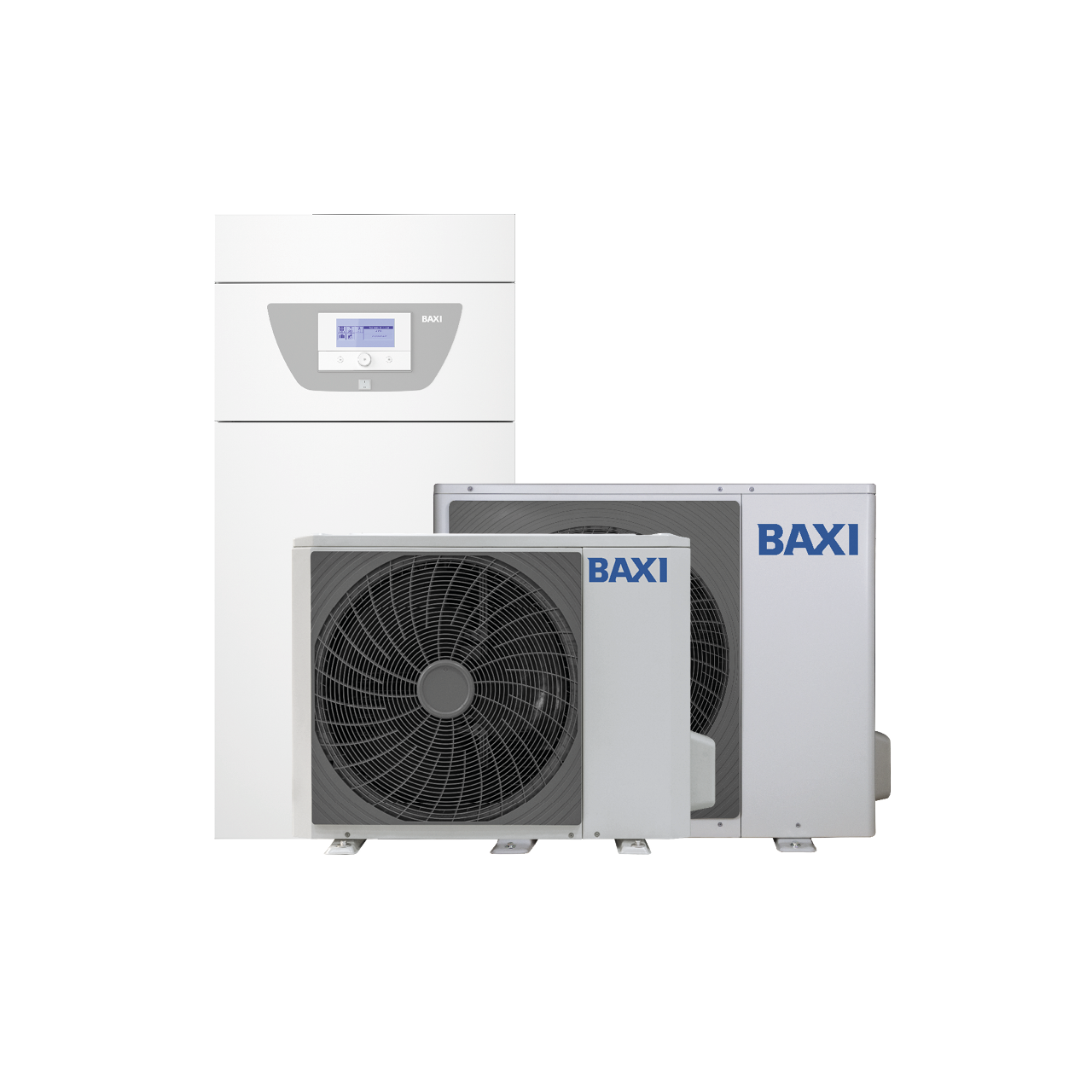

Alya FS

Heat Pumps

Air-source split heat pumps

Residential

Floor-standing indoor unit with 177-liter tank

Alya FS range comprises air-source heat pumps for heating, cooling, and domestic hot water, operating with R32 refrigerant fluid.

Conceived for new buildings, it has been designed to also deliver great performance when combined with radiators in refurbished heating systems.

An outstanding feature of Alya is its internal unit equipped with an updated, intuitive, and functional control panel.

Particularly suitable for buildings of medium and large surface area, the integrated 177-litre tank ensures domestic hot water delivery as soon as you turn on the tap.

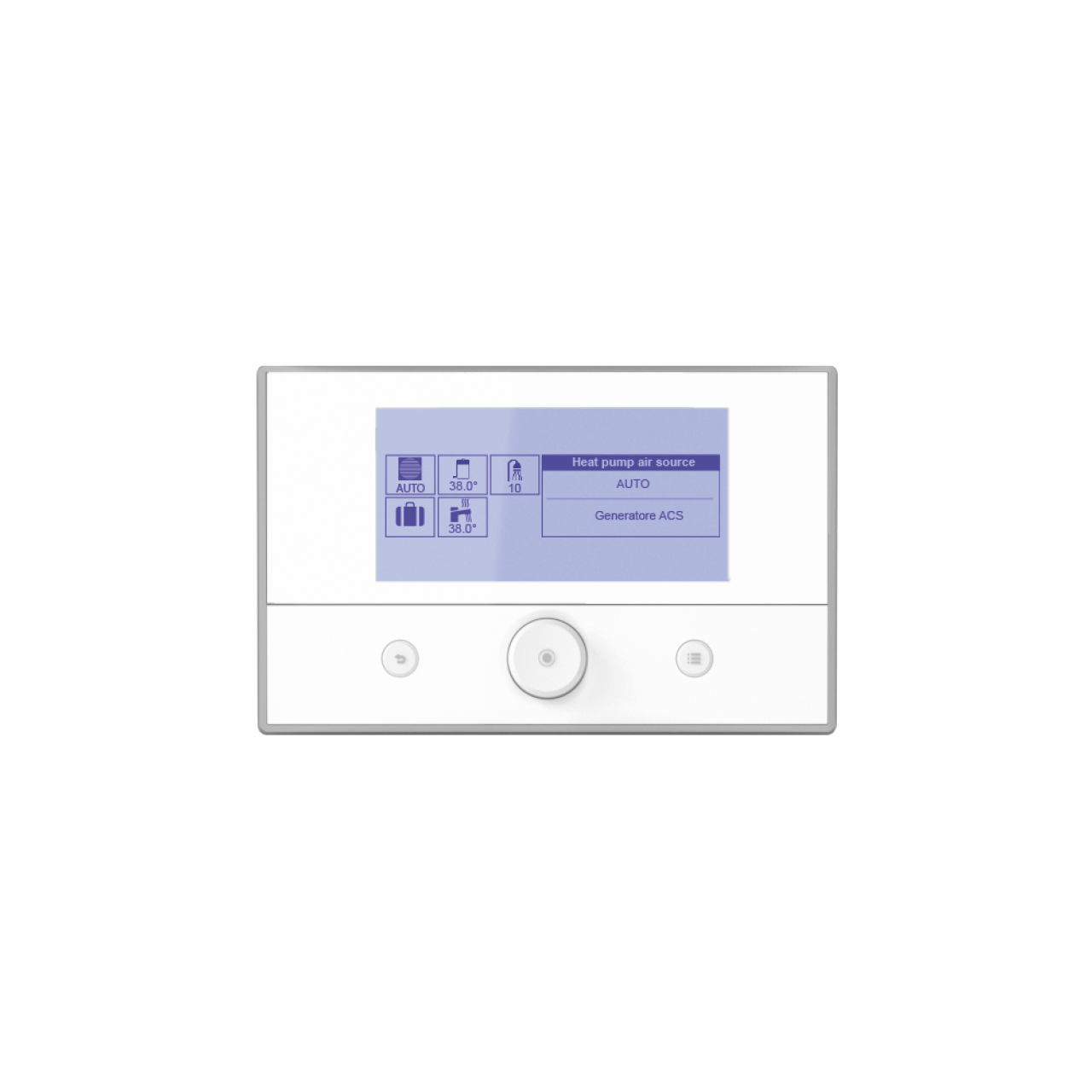

Wide display, with intuitive text and icons for user-friendly access of the menu

Find a Dealer

Download Area

Characteristics

Models: 4M, 6M, 8M, 10M, 12M/T, 16M/T
Maximum energy efficiency
Can be directly connected with the Baxi Mago Smart Thermostat (available as option)
177-litre domestic hot water tank
2nd mixing zone control (available as option)
Hydraulic back-up (version H) or electric back-up (version E)
Wide operation ratio DC inverter compressor, low GWP refrigerant (R32)
Low noise indoor unit (sound power <39 dB(A))
Condensate diptray supplied as standard

Features

Baxi Space

Advanced system control for a smart integration of different technologies. It offers a customized and efficient system tailored to meet all your needs and preferences

Digital Ready

It can be connected to BaxiMAGO, the WI-FI smart modulating thermostat, and Baxi service App. You can have your boiler always under control

Keymark

The product follows the European Standards, and it is marked with Keymark

Smart Grid

It matches the supply and demand of electricity in real time, saving money on the energy bill

R32

R32 has a low GWP (675), meaning it has a very limited impact on the environment

Heating, cooling and DHW

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product. This appliance also allows the domestic hot water production

60°

This product can produce hot water up to 60°C, without any other accessories required (such as immersion resistance)

Show Less

Technical Specification

MODELS		4M	6M	8M	10M	12M	16M	12T	16
ErP data
Nominal heating capacity (1)	kW	4,25	6,2	8,3	10	12,1	16	12,1	16
COP (1)		5,2	5	5,2	5	4,95	4,5	4,95	4,5
Nominal cooling output (2)	kW	4,64	6,7	8,47	10,24	10,77	11,63	10,77	11,63
EER (2)		5,5	4,95	5,11	4,71	3,69	3,61	3,69	3,61
Performance
Refrigerant fluid R32 / Equivalent CO2	kg/tCO2e	1,50/1,02	1,65/1,11	1,65/1,11	1,84/1,24	1,84/1,24	1,84/1,24	1,84/1,24	1,84/1,24
Sound power - Indoor unit	dB(A)	33	33	37	39	39	39	39	39
Sound power - Outdoor unit	dB(A)	52	52	54	54	56	56	56	56
System
System water content - min.	l	24	29	33	37	41	48	41	48
Max. pre-loaded length	m	15	15	15	15	15	15	15	15
Dimensions
Empty weight - Indoor unit	kg	140,5	140,5	140,5	140,5	142,5	142,5	142,5	142,5
Empty weight - Outdoor unit	kg	57,5	57,5	76,5	76,5	96	112	96	112
Dimensions (hxwxd) - Indoor unit	mm	1250x600x735	1250x600x735	1250x600x735	1250x600x735	1250x600x735	1250x600x735	1250x600x735	1250x600x735
Dimensions (hxwxd) - Outdoor unit	mm	712x1008x375	712x1008x375	712x1008x375	712x1008x375	865x1118x523	865x1118x523	865x1118x523	865x1118x523
Electrical characteristics
Power supply	V/Ph/Hz	230/1/50	230/1/50	230/1/50	230/1/50	230/1/50	230/1/50	400/3/50	400/3/50

(1) Outdoor air temperature 7°C - 87% R.H., water temperature 30/35°C - EN 14511

(2) Outdoor air temperature 35°C, water temperature 18°C - EN 14511

Download Area

Energy label

Installation, User and Service Manual

Leaflet

Get more details and information about Baxi products

Find a Dealer

Related Products

Auriga HP

Auriga HP air-to-water heat pump offers efficient, low-temperature heating for modern homes, with quiet performance and reliable comfort down to −20°C.

View product

Alya WH

Air-source split heat pumps

View product

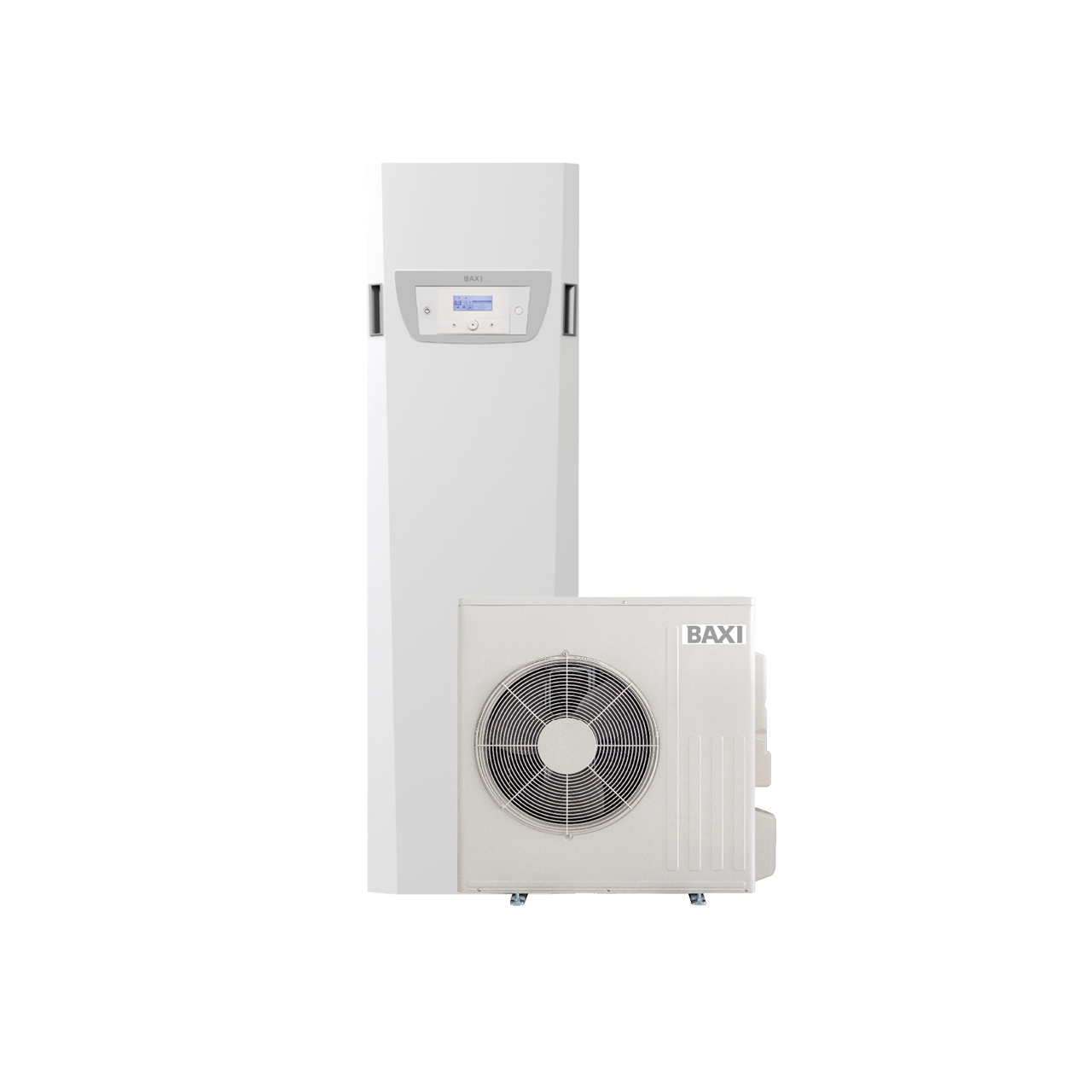

Alya FS Slim E

Air-source split heat pumps with compact dimensions

View product

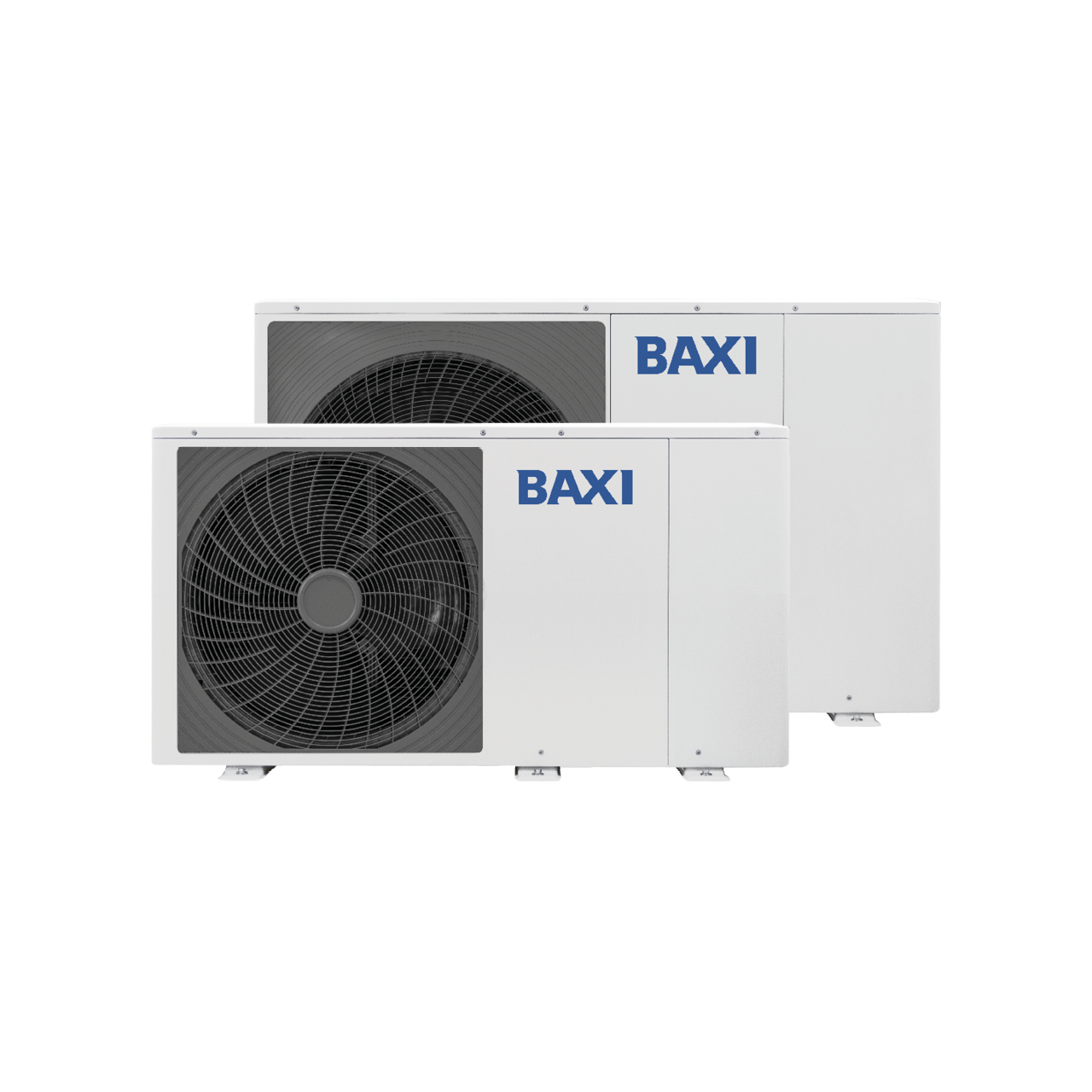

Auriga A
