Wall-hung air conditioners

Residential / Commercial

Wall Hung

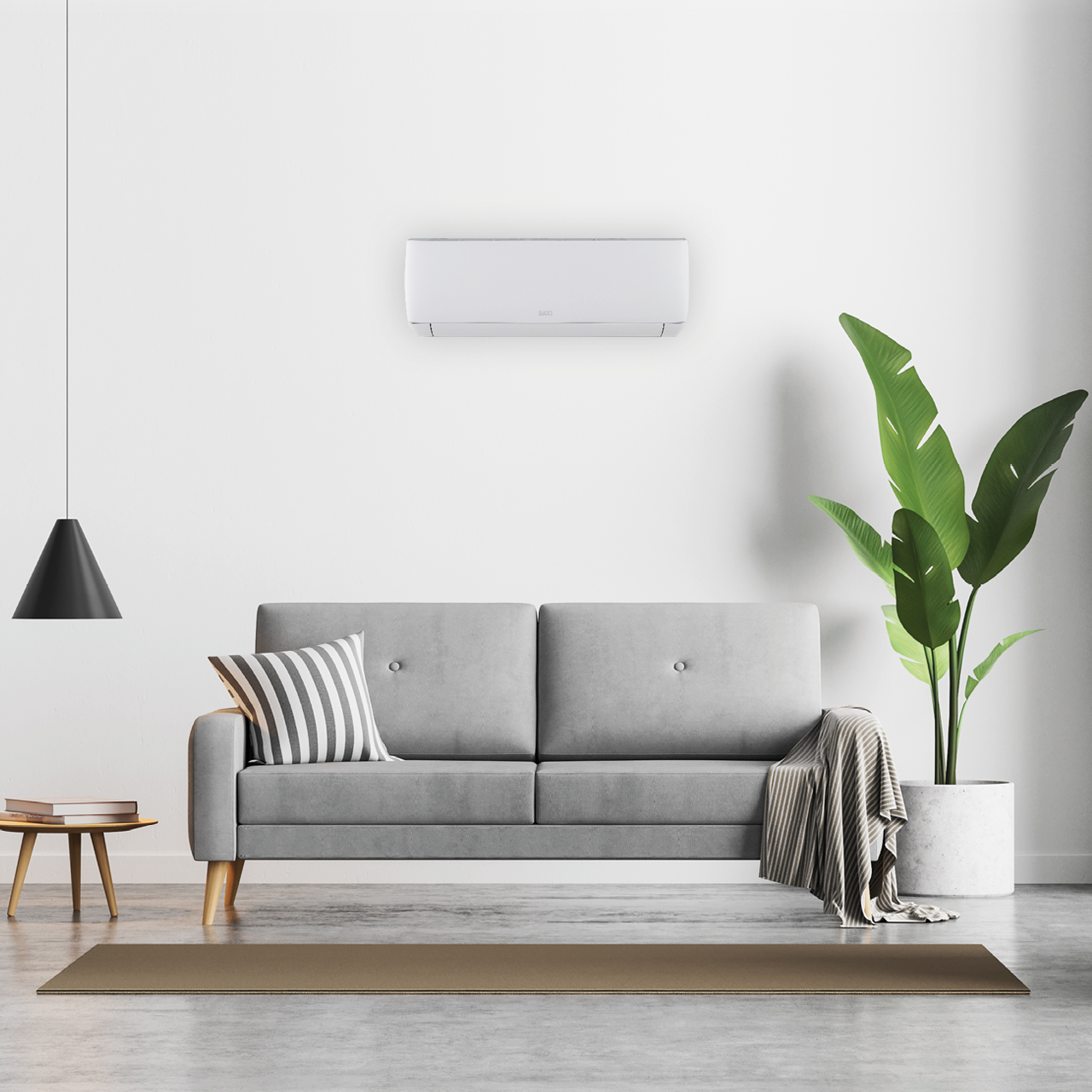

Baxi Astra Mono and Multi Split wall-hung air conditioners have an elegant and minimal design, with a white matt finish, making them suitable for installation in any room.

Rapid gas connection via the removable bottom cover eases fitting of the indoor unit saving time and money.

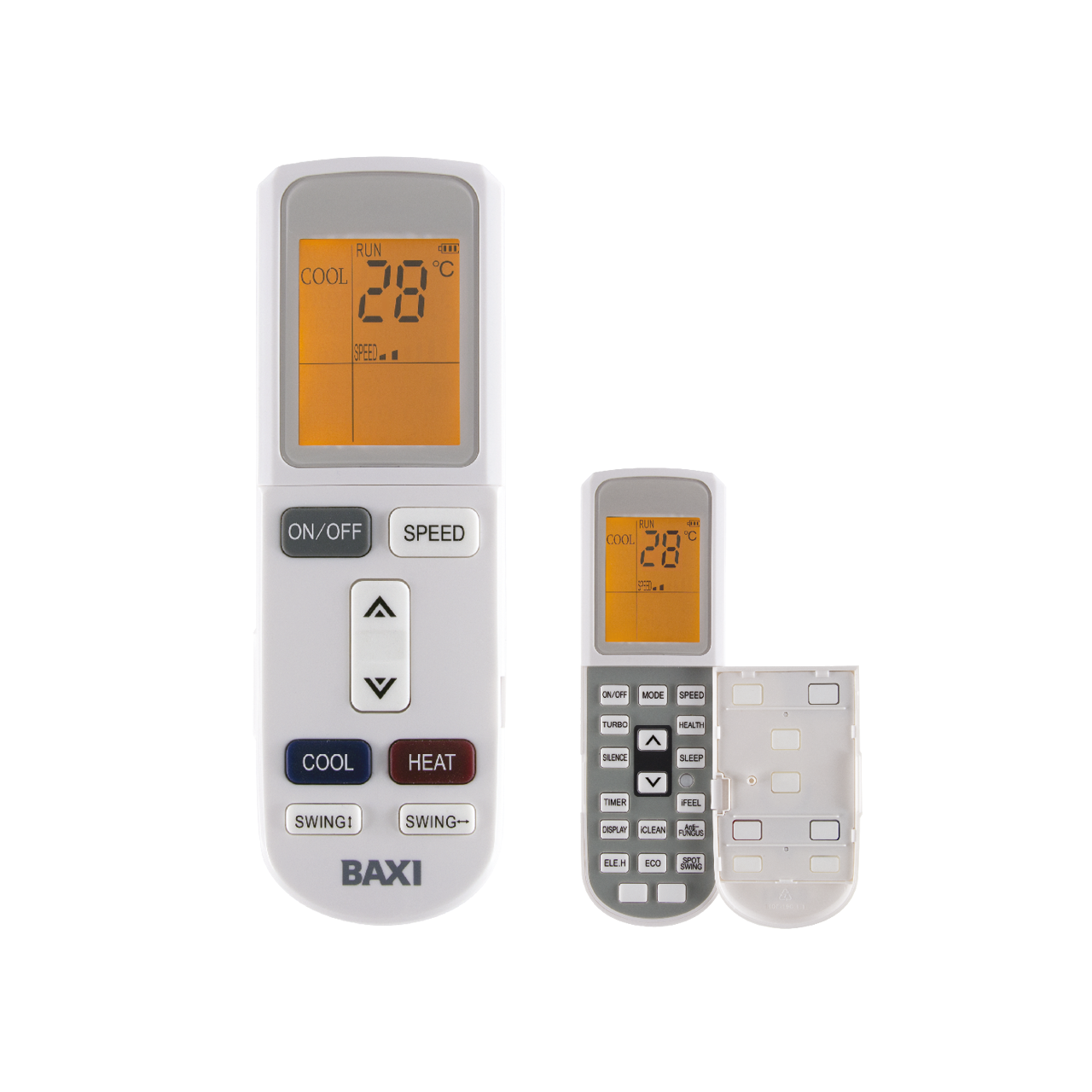

The remote control with LCD display, supplied as standard, enables easy comfort control thanks to its double keyboard with quick menu.

Find a Dealer

Download Area

Characteristics

Models: 7.000 (Multi), 9.000, 12.000, 18.000, 24.000 (Mono)
Wall-hung air conditioner with an elegant and modern design
High energy efficiency class: A++ in cooling and class A+ in heating
Eco-friendly R32 refrigerant and greater performance
Easy gas connections, from the back, left or right side
Silent operation
Extended operating limits (operation from -15 °C to +52 °C)
Easy-to-use remote control included

Features

Heating and cooling

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product

Technical Specification

MODELS		9.000 Btu/h	12.000 Btu/h	18.000 Btu/h	24.000 Btu/h
Erp Data
SEER		6,2	6,19	7	6,53
SCOP		4	4,03	4,19	4,09
Rated cooling capacity	kW	2,65	3,5	5,3	6,7
Rated heating capacity	kW	2,7	2,7	4,4	5,7
Dimensions
Dimensions (w x h x d) - OUTDOOR Unit	mm	703 x 455 x 253	803 x 538 x 309	878 x 557 x 353	961 x 700 x 338
Weight - OUTDOOR Unit	kg	18	22,5	28	39
Sound power level - OUTDOOR Unit	dB(A)	61	62	62	66
Dimensions (w x h x d) -INDOOR unit	mm	792 x 292 x 201	792 x 292 x 201	940 x 316 x 224	1132 x 330 x 232
Weight - INDOOR unit	kg	8,5	8,5	11,5	14
Sound power level - INDOOR unit	dB(A)	54	53	57	63
