Condensing boilers

Luna AIR

Combi condensing boilers for outdoor installation

Residential
Outdoor solutions

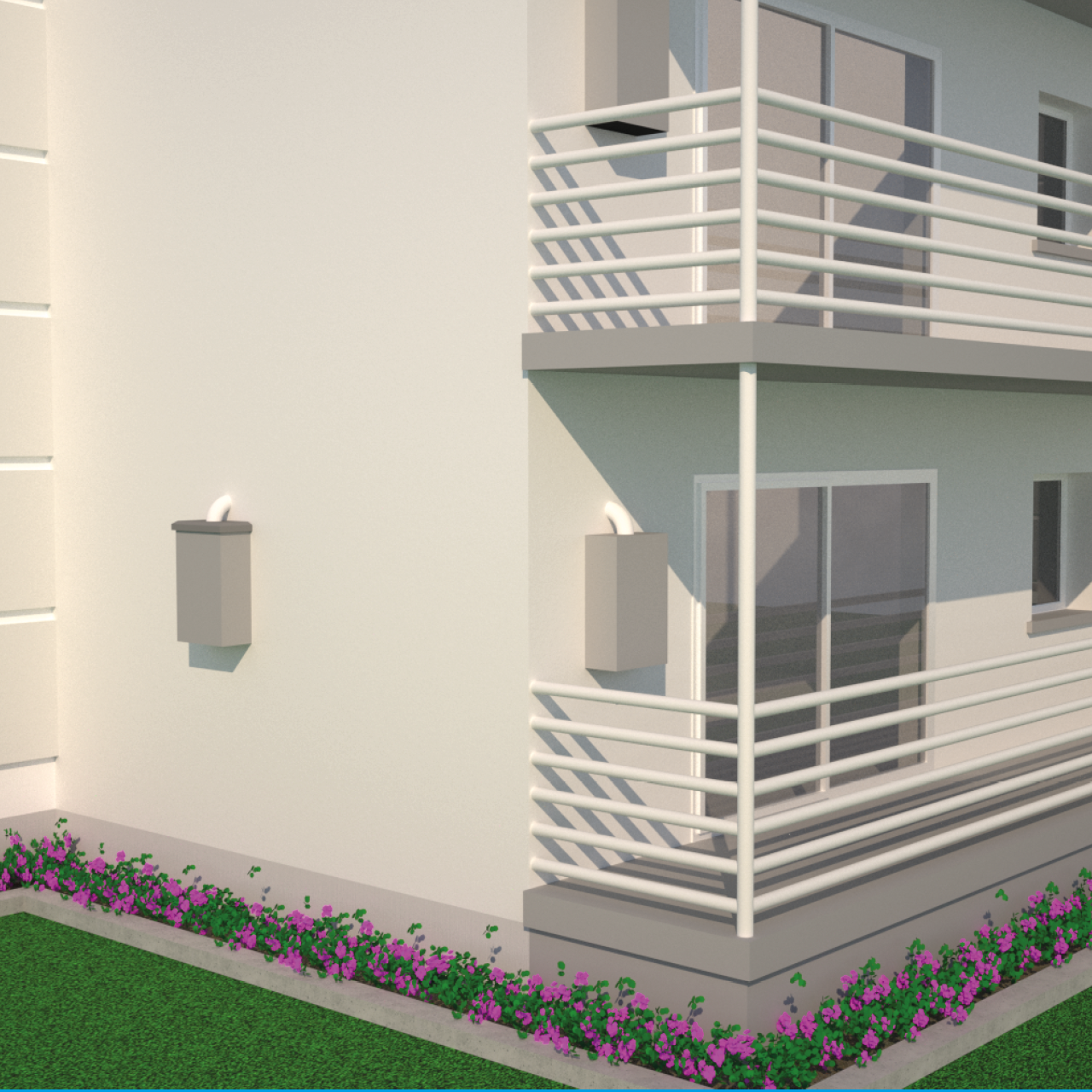

Luna Air is the range of condensing boilers for outdoor wall-hung and built-in installations, ideal in all situations where available space does not permit indoor installation.


A built-in installation is possible (with connection kit available as optional) to save space on small balconies or if there are any aesthetic constraints, being almost invisible.

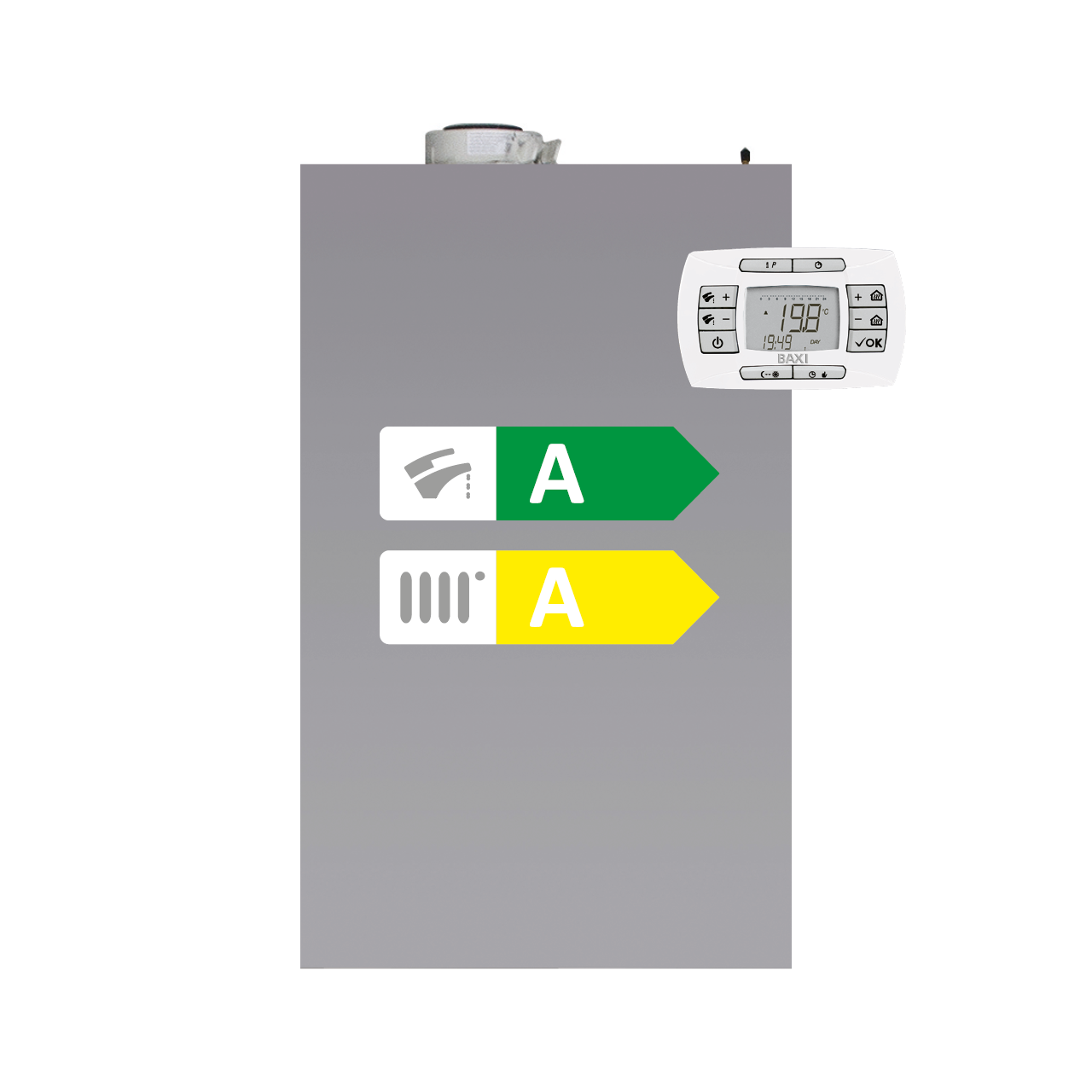

Remote digital control panel supplied with the boiler for an easy comfort management.


Thanks to the 1:7 modulation range, the boiler’s output varies in line with system demands, with resulting savings on gas consumption and energy costs.

Characteristics


  • Models: 24, 28
  • Digital remote control panel with LCD display supplied as standard

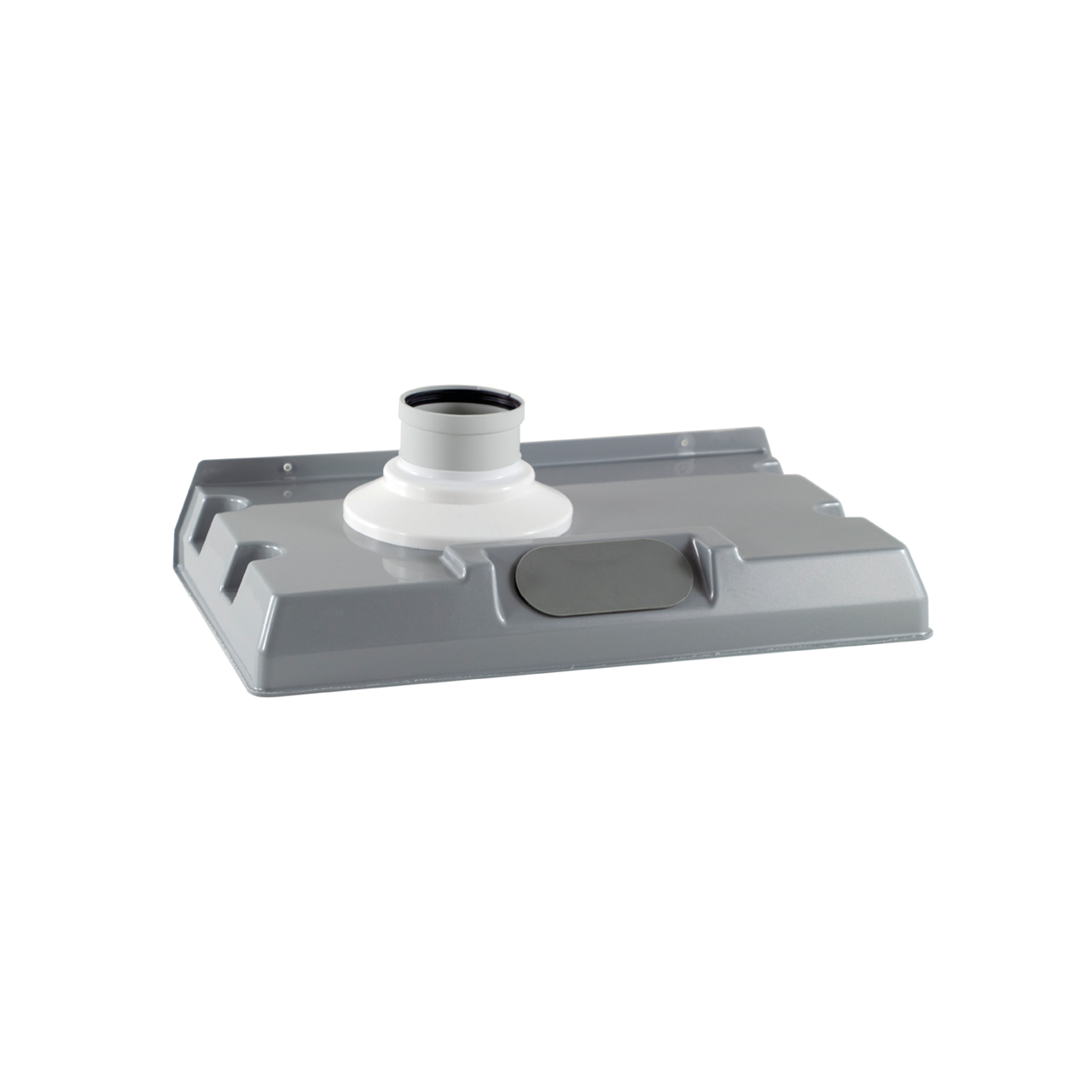

  • Wall-hung installation in partially protected places and open-air wall-hung installation (with cover kit)
  • Electrogalvanized cover for outdoor use
  • Minimum working temperature: -15°C, anti-frost function and grade of protection IPX5D
  • Built-in installation option
  • Integration with solar system option

Features

Digital Ready

It can be connected to BaxiMAGO, the WI-FI smart modulating thermostat, and Baxi service App. You can have your boiler always under control

Hybrid Ready

It facilitates the integration of other heating sources, such as heat pumps and solar thermal, simplifying the climate management of your home

Gas Adaptive Control

It automatically detects the kind of gas and continuously adjusts the gas-to-air ratio for the highest quality combustion and savings

1:7 modulation

Modulation up to 1:7 reduces on-off cycles for improved efficiency and savings
Show More
Show Less

Technical Specification

MODELS2428
ErP data
Rated heat outputkW2024
Useful heat output at rated heat output and high temperature regime(2) P4kW2024
Useful heat output at 30% of rated heat output and low temperature setting(1) P1kW6,78
Space heating – Seasonal energy efficiency ƞs%9393
Useful efficiency at rated heat output and high temperature setting(2) ƞ4%8887,9
Useful efficiency at 30% of rated heat output and low temperature setting(1) ƞ1%9898
Sound power level, indoors LWAdB4950
Declared load profileXLXL
Heat input/output
Rated heat input (Qn) for domestic hot waterkW24,728,9
Rated heat input (Qn) for heatingkW20,624,7
Rated heat output (Pn) for domestic hot waterkW2428
Rated heat output (Pn) 80/60 °C for heatingkW2024
Rated heat output (Pn) 50/30 °C for heatingkW21,826,1
Heating circuit
Temperature range for heating circuit°C25/8025/80
Water capacity of expansion vessell88
Domestic water circuit
Temperature range for domestic water circuit°C35/6035/60
Domestic water production with ΔT = 25 °Cl/min13,816,1
Domestic water production with ΔT = 35 °Cl/min9,811,5
Combustion
Diameter of separate discharge pipesmm80/8080/80
Diameter of coaxial discharge pipesmm60/10060/100
Nitrogen oxide emissions NOxmg/kWh1517
Flue gas mass flow rate (max)kg/sec0,0120,014
Flue gas mass flow rate (min)kg/sec0,0020,002
Electrical characteristics
Power supply voltageV230230
Power supply frequencyHz5050
Rated electric powerW8599
Dimensions
Humidity protection rating (EN 60529)IPX5DX5D
Net weightkg32,532,5
Dimensions (height/width/depth)mm770/470/238 - 1170/600/240 (case)770/470/238 - 1170/600/240 (case)
