Condensing Boilers

Luna Platinum

Heating only and combi condensing boilers for the easiest management of comfort levels.

Residential
Wall Hung

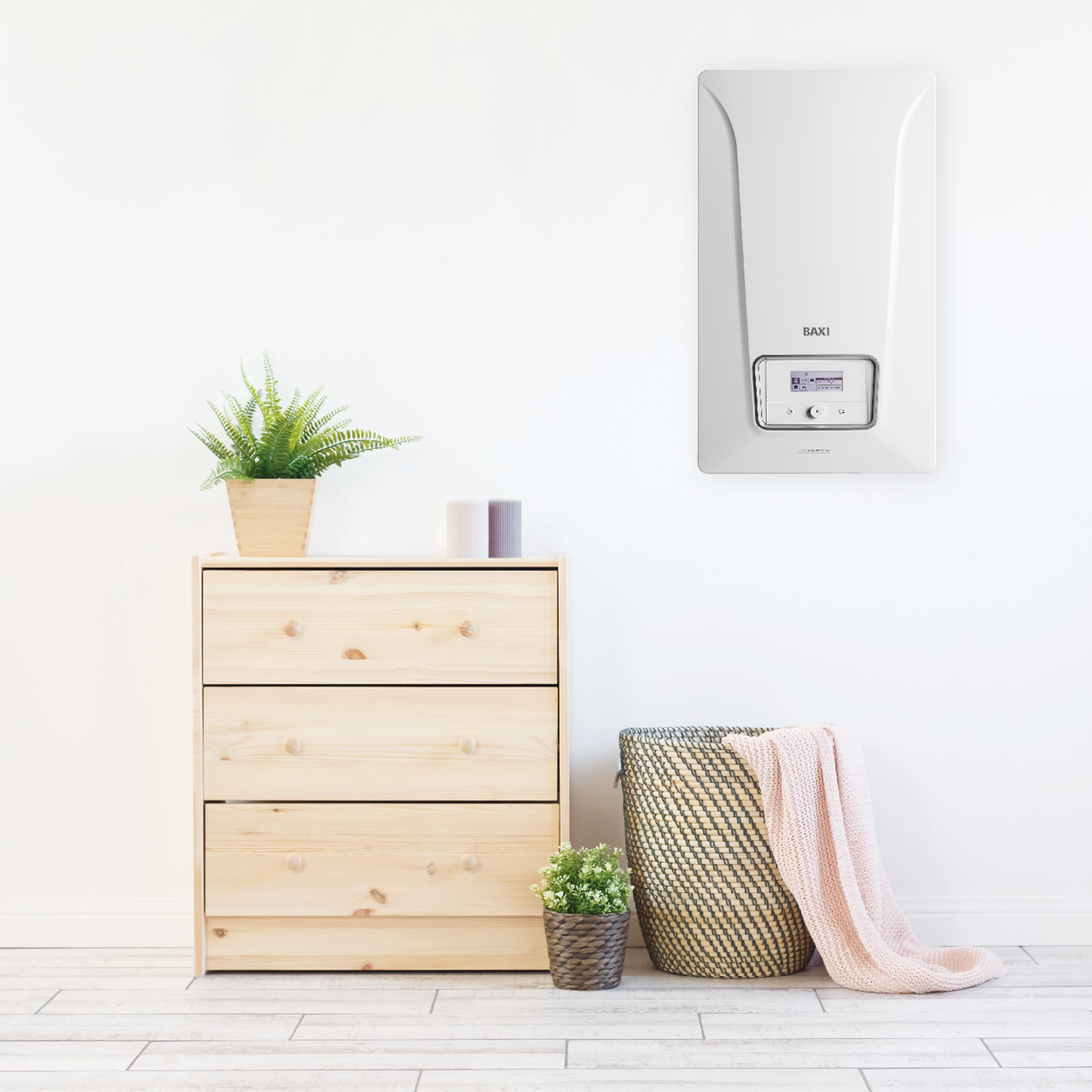

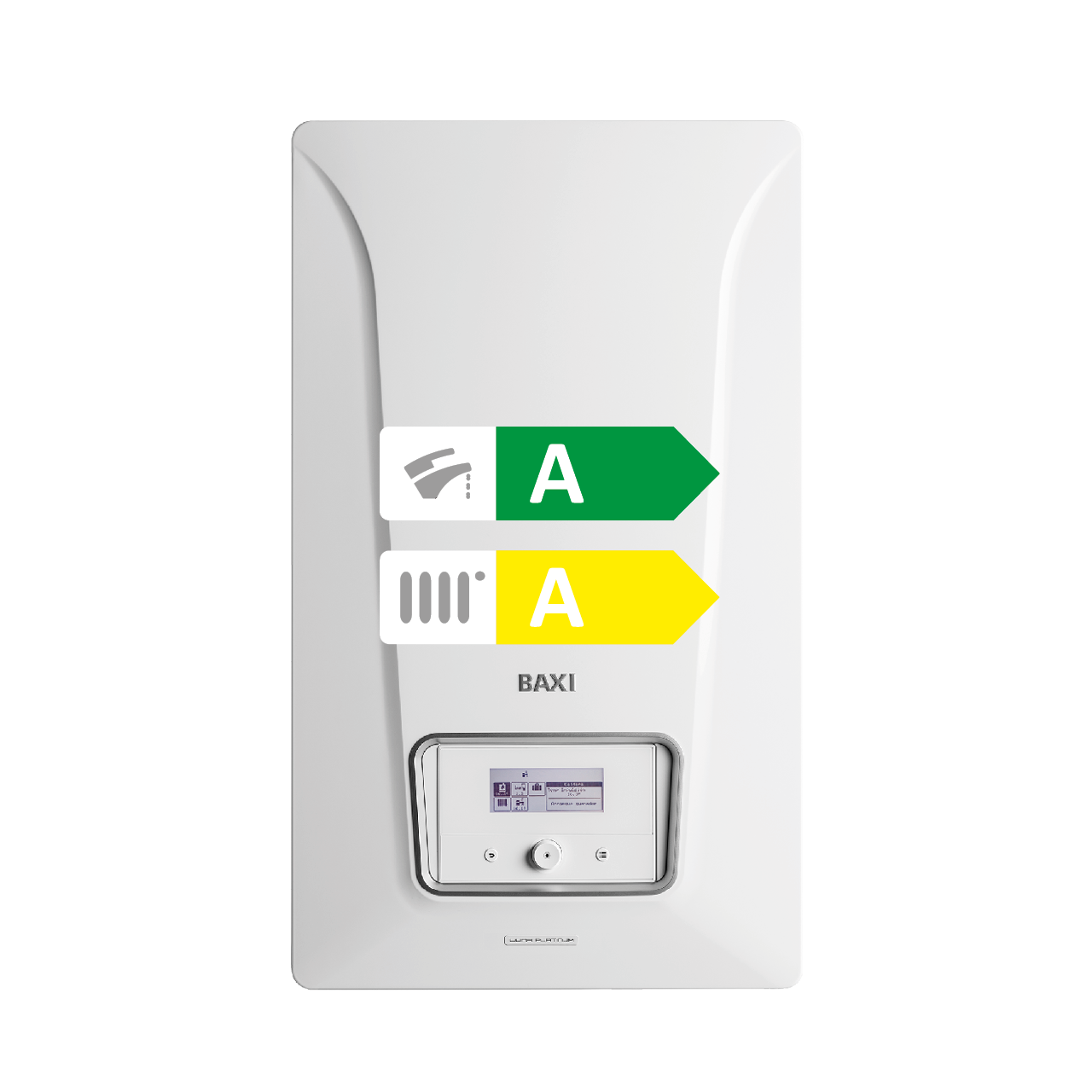

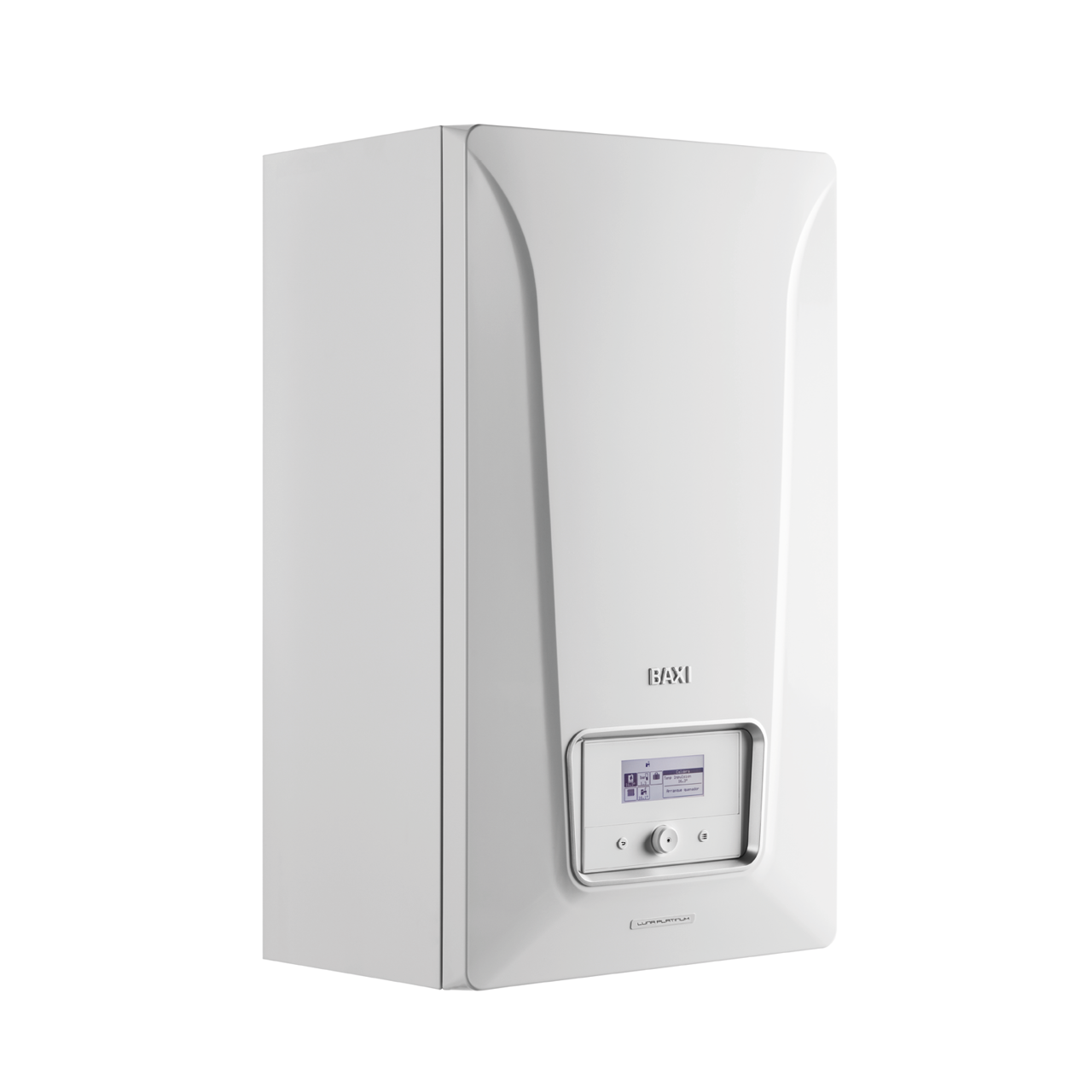

Luna Platinum is a high efficiency wall hung boiler designed to meet all installation requirements in both new build and replacement situations.

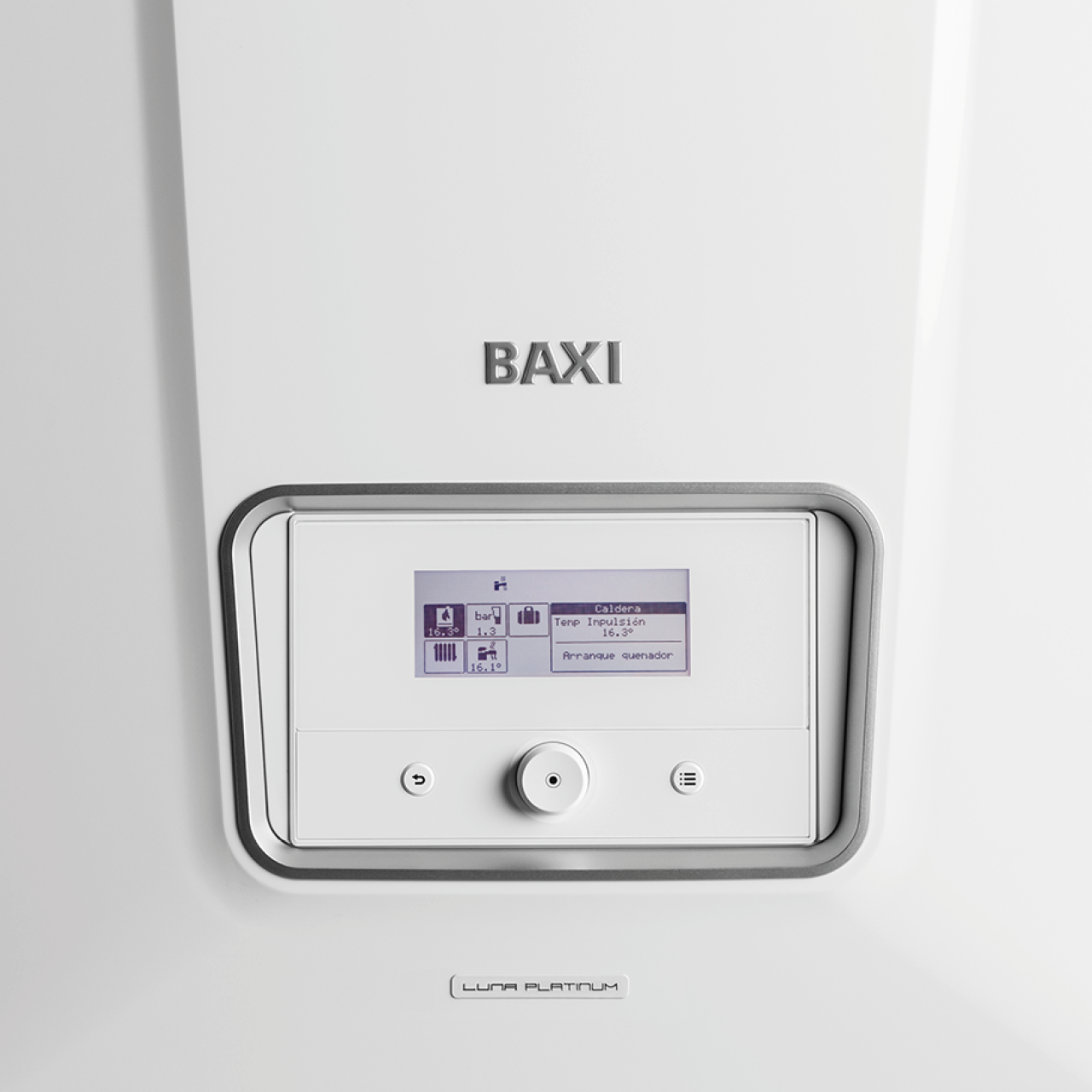

Equipped with the advanced electronics BaxiSpace, Luna Platinum offers maximum control over a variety of possibilities such as the management of alternative heating sources, multiple zones, and indirect hot water cylinders.


Renewable energies are readily integrated due to specifically designed and factory-made solutions.

Characteristics


  • Models: 24, 35, 1.12, 1.24, 1.35
  • Modulation up to 1:10 reduces on-off cycles for improved efficiency and savings. Silent and durable, delivering stable comfort levels
  • Automatic combustion control maintains the highest level of efficiency
  • Brass hydraulic group
  • Multicoil stainless steel exchanger, better resistance to overheat
  • Operation with natural gas, LPG and a 20% hydrogen blend
  • Ducting of existing chimneys thanks to the Ø 50 option (rigid or flexible flue pipes) and ready to work with collective chimney

Features

Baxi Space

Advanced system control for a smart integration of different technologies. It offers a customized and efficient system tailored to meet all your needs and preferences

Digital Ready

It can be connected to BaxiMAGO, the WI-FI smart modulating thermostat, and Baxi service App. You can have your boiler always under control

Hydrogen Ready

Ready to work with a 20% hydrogen/natural gas blend, reducing gas consumption and environmental impact

Hybrid Ready

It facilitates the integration of other heating sources, such as heat pumps and solar thermal, simplifying the climate management of your home

Gas Adaptive Control

It automatically detects the kind of gas and continuously adjusts the gas-to-air ratio for the highest quality combustion and savings

1:10 Modulation

Modulation up to 1:10 reduces on-off cycles for improved efficiency and savings
Show More
Show Less

Technical Specification

MODELS1.121.241.352435
ErP data
Rated heat outputkW1224322028
Useful heat output at rated heat output and high temperature regime(2) P4kW1224322028
Useful heat output at 30% of rated heat output and low temperature setting(1) P1kW4,18,110,86,89,4
Space heating – Seasonal energy efficiency ƞs%9494949494
Useful efficiency at rated heat output and high temperature setting(2) ƞ4%88,187,987,988,088,1
Useful efficiency at 30% of rated heat output and low temperature setting(1) ƞ1%99,498,898,999,499,0
Sound power level, indoors LWAdB4551544951
Declared load profile---XLXXL
Heat input/output
Rated heat input (Qn) for domestic hot waterkW---24,734,9
Rated heat input (Qn) for heatingkW12,424,733,020,628,9
Rated heat output (Pn) for domestic hot waterkW---2434
Rated heat output (Pn) 80/60 °C for heatingkW1224322028
Rated heat output (Pn) 50/30 °C for heatingkW13,126,134,921,630,6
Heating circuit
Temperature range for heating circuit°C25/8025/8025/8025/8025/80
Water capacity of expansion vessell1010101010
Domestic water circuit
Temperature range for domestic water circuit°C35/6035/6035/6035/6035/60
Domestic water production with ΔT = 25 °Cl/min---13,819,5
Domestic water production with ΔT = 35 °Cl/min---9,813,9
Combustion
Diameter of separate discharge pipesmm80/8080/8080/8080/8080/80
Diameter of coaxial discharge pipesmm60/10060/10060/10060/10060/100
Nitrogen oxide emissions NOxmg/kWh1421301421
Flue gas mass flow rate (max)kg/sec0,0060,0110,0150,0110,016
Flue gas mass flow rate (min)kg/sec0,0010,0010,0020,0010,002
Electrical characteristics
Power supply voltageV230230230230230
Power supply frequencyHz5050505050
Rated electric powerW5475957595
Dimensions
Humidity protection rating (EN 60529)IPX5DX5DX5DX5DX5D
Net weightkg31,3/32,331,3/32,332/3431.5/32.532.2/34.2
Dimensions (height/width/depth)mm763/450/334763/450/334763/450/334763/450/334763/450/334

(1) Low temperature: return temperature (at boiler inlet) for condensing boilers 30°C, for low temperature boilers 37°C and for other heaters 50°C.
(2) High temperature setting means 60 °C return temperature at boiler inlet and 80 °C flow temperature at boiler outlet.
