IQF

Fan coils
IQF

Fan coils

Ceiling/Floor fan coil terminals for heating/cooling

Residential and commercial

Floor/Ceiling

Ceiling/Floor range of hydronic fan units for heating and cooling systems ideal for any residential or commercial application. The fan coil units can be combined with the newest low temperature heating generators, such as condensing boilers and heat pumps.

Year-round comfort, high efficiency and minimized energy consumption are obtained thanks to the heating/cooling operation mode.

DC inverter technology provides for maximum operating efficiency, with savings on consumptions of up to 70% in comparison with standard fans.

Find a Dealer

Characteristics

Models: 400, 595, 790, 1190, 1360 air flow m³/h
Elegant and compact design

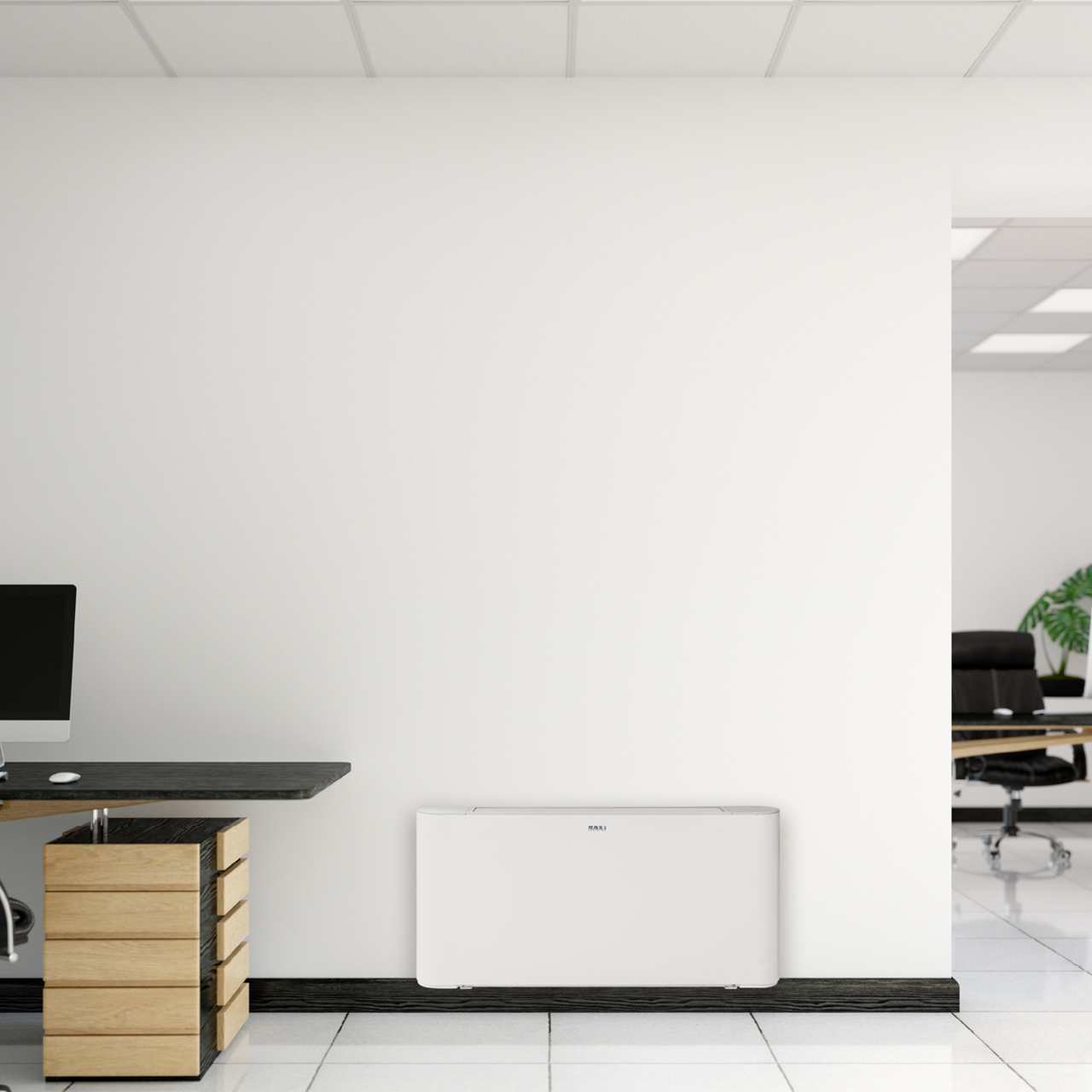

Installation versatility: the units can be ceiling or floor mounted
High efficiency and silent operation thanks to DC inverter motor
2-pipe system
Hydraulic connections on the left side (front-on view)
Ideal for rooms without false ceiling
Condensate trap included
Removable and washable air filter

Features

Heating and cooling

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product

Technical Specification

MODELS		IQF 20	IQF 35	IQF 45	IQF 60	IQF 70
Electrical data
Electrical power supply	V/Ph/Hz	230±10V/1/50	230±10V/1/50	230±10V/1/50	230±10V/1/50	230±10V/1/50
Rated power supply	W	17	26	50	96	113
Air flow (A/M/B)	m³/h	400/315/190	595/470/340	790/580/410	1190/855/505	1360/1015/685
Cooling (1)
Power (A/M/B)	kW	2,35/1,94/1,19	3,50/2,89/2,22	4,30/3,48/2,71	5,60/4,47/3,14	7,35/6,12/4,57
Water flow (A/M/B)	m³/h	0,40/0,34/0,21	0,60/0,50/0,38	0,74/0,60/0,47	0,96/0,77/0,54	1,27/1,05/0,79
Water losses (A/M/B)	kPa	13,3/9,98/4,59	34,1/24,63/15,39	54,2/36,22/22,78	50,7/33,38/17,73	44,1/33,7/19,41
Heating (2)
Power (A/M/B)	kW	2,60/2,11/1,34	3,50/2,87/2,19	4,30/3,43/2,60	6,00/4,77/3,36	8,05/6,46/4,71
Water Flow (A/M/B)	m³/h	0,45/0,37/0,23	0,61/0,48/0,38	0,75/0,60/0,45	1,04/0,83/0,59	1,39/1,12/0,82
Water losses (A/M/B)	kPa	14,3/10,33/4,5	35,1/24,41/14,82	54,3/36,87/22,32	55,5/37,66/19,27	46,9/31,9/18,16
Heating (3)
Power (A/M/B)	kW	3,45/3,1/1,95	4,89/4,47/3,31	6,02/5,44/4,46	8,29/7,39/5,77	10,69/9,69/7,22
Water flow (A/M/B)	m³/h	0,59/0,27/0,11	0,84/0,39/0,19	1,04/0,47/0,26	1,43/0,64/0,33	1,84/0,83/0,41
Water losses (A/M/B)	kPa	19,06/4,46/0,97	44,14/10,4/2,97	65,75/14,99/5,07	65,31/14,46/4,49	61,11/14,08/4,05
Sound data
Sound pressure level (A/M/B) (4)	dB(A)	29/24/20	38/32/25	46/38/30	51/43/31	52/44/33
Level of sound power (A/M/B)(5)	dB(A)	43/37/29	52/45/37	59/52/43	65/58/56	64/58/49
Battery
Maximum operating pressure	Mpa	1,6	1,6	1,6	1,6	1,6
Machine body
Dimensions (wxhxd)	mm	1020x495x200	1240x495x200	1240x495x200	1360x495x200	1360x591x200
Net weight	kg	16,5	19,5	25,5	28,5	32,5
Connections
Hydraulic connection	Inches	3/4”	3/4”	3/4”	3/4”	3/4”
Outlet pipe (external diameter)		Ø 18,5	Ø 18,5	Ø 18,5	Ø 18,5	Ø 18,5

A: High speed fan; M: Average speed fan; B: Low speed fan.
(1) Cooling mode: inlet air teperature 27°C d.b. /19°C w.b., inlet/outlet water temperature 7°C/12°C.
(2) Heating mode: inlet air teperature 20°C d.b., inlet/outlet water temperature 45/40°C.
(3) Heating mode: inlet air teperature 20°C d.b., inlet/outlet water temperature 50°C (same water flow as in standard cooling mode).
(4) Sound tested in semi-anechoic chamber, according to ISO 3744, 1m distance (conditions as note (2)).
(5) According to ISO 3744 (conditions as note (2)).
