Wall-hung fan coil terminals for heating/cooling

Residential

Wall Hung

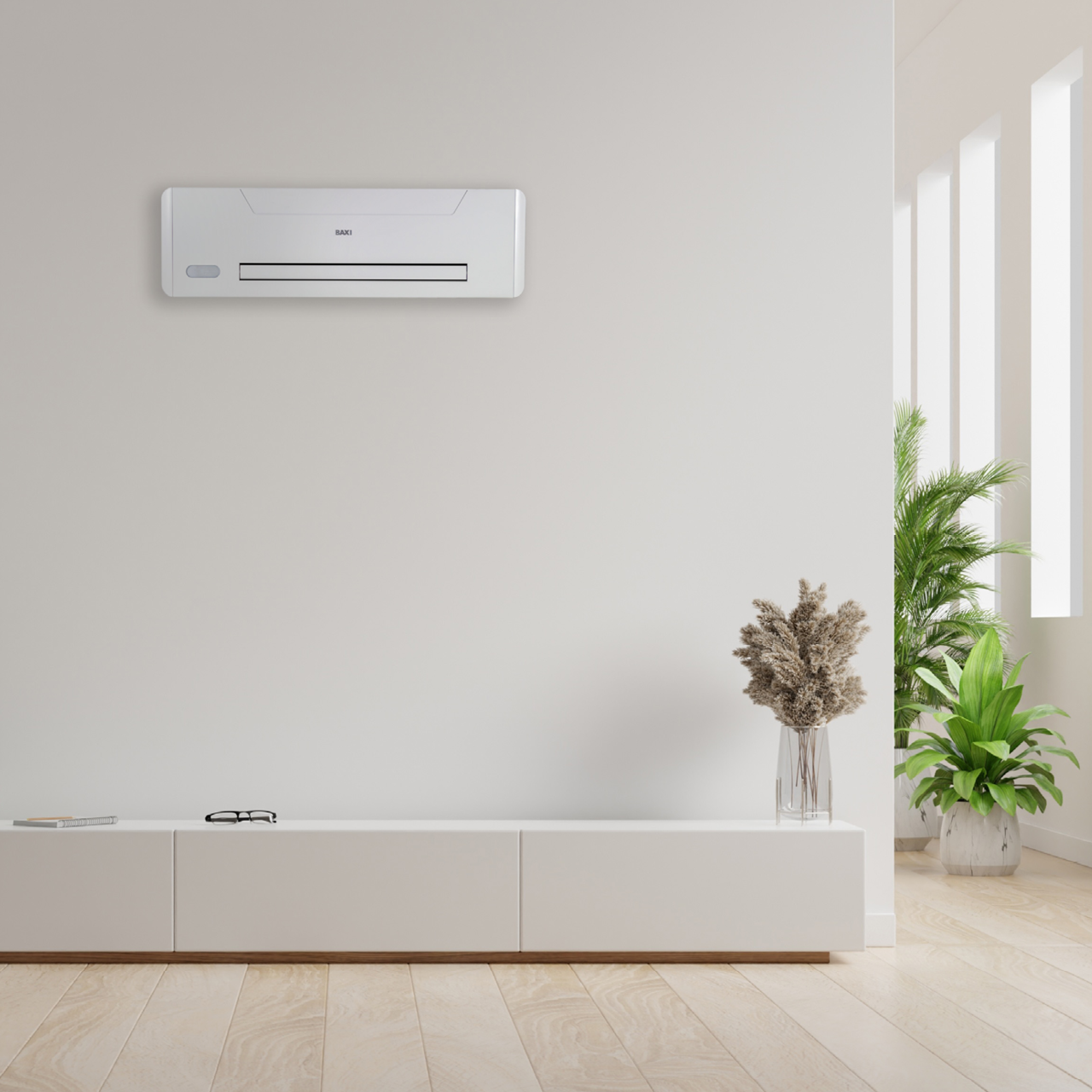

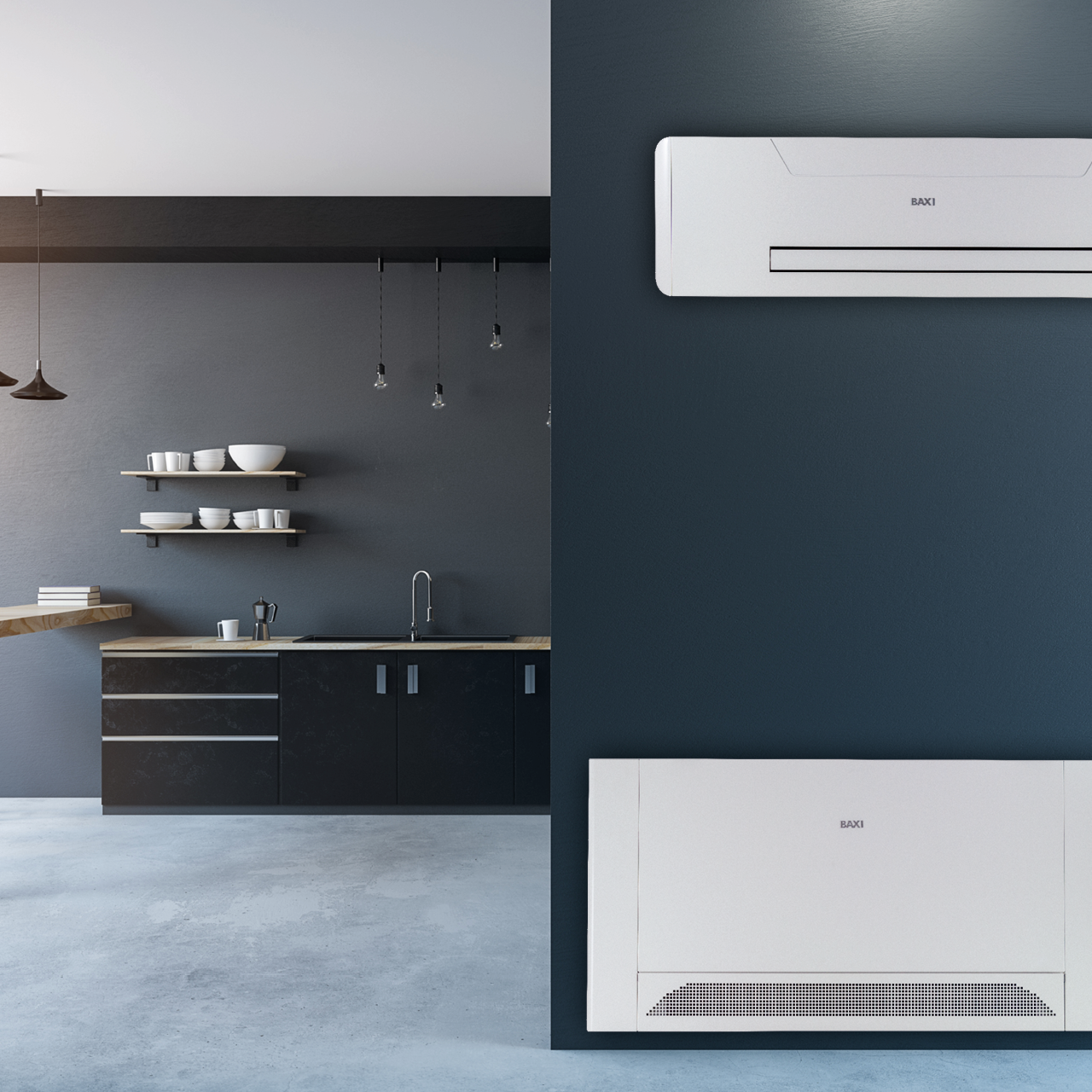

Wall-mounted hydronic terminals for heating and cooling systems with a unique and attractive design suitable for modern and prestigious environments.

Benefitting from a depth of just 128mm easy integration into any environment without occupying otherwise useable space dedicated to furniture; moreover, whisper-quiet operation is enjoyed thanks to solid and robust construction.

Find a Dealer

Characteristics

Models: 228, 331, 440 air flow m³/h

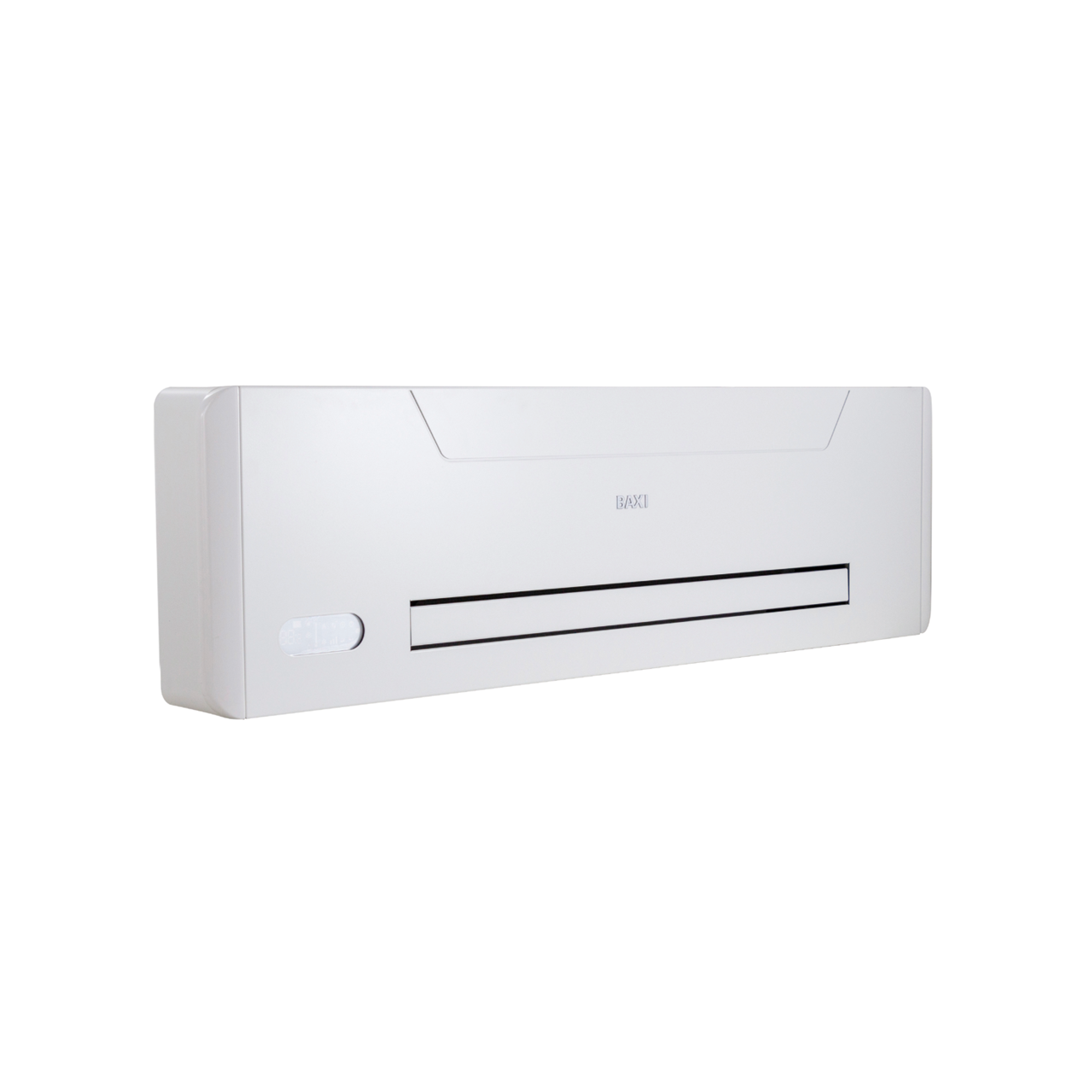

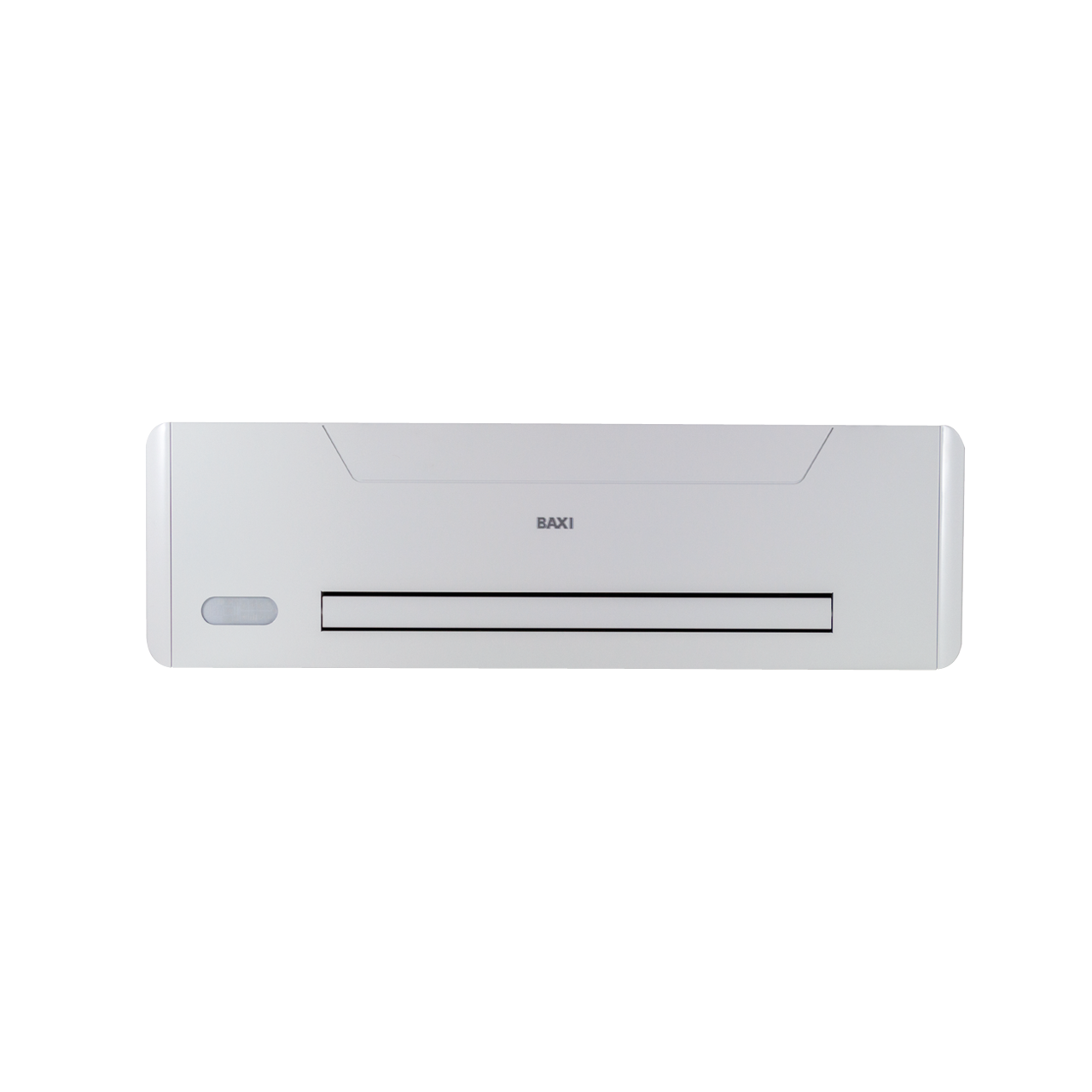

Wall-mounted terminal
3 models differentiated by finned coil size (400, 600 and 800) available in 4 versions: with touchpad and remote control of both modulating speed and fixed speed, and with 0-10V connection
Just 128 mm depth
Low consumption and modulated air flow thanks to DC inverter motor fans
Solid and robust structure, resulting in a total absence of vibration for silent operation
Easy-to-use touchpad and remote control (supplied as standard)
Hydraulic connections can be factory configured right or left side

Features

Heating and cooling

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product

Technical Specification

MODELS		400	600	800	800 XL
Cooling performance (A27°C; W7°C)
Cooling capacity (1)	kW	1,24	1,61	1,94	3,12
Sensible performance in cooling (1)	kW	0,78	1,27	1,52	2,51
Water flow rate (1)	l/h	208	279	365	537
Heating performance (A20°C; W45°C)
Heating output (2)	kW	1,5	2,01	2,41	3,45
Water flow rate (2)	l/h	260	349	451	593
Water pressure drop (2)	kPa	16,3	7,2	8,1	12,5
Hydraulic data
Battery water content	l	0,5	0,61	0,77	1,54
Maximum operating pressure	bar	10	10	10	10
Hydraulic connections	inches	Eurokonus 3/4’’	Eurokonus 3/4’’	Eurokonus 3/4’’	Eurokonus 3/4’’
Aeraulic data
Maximum air flow rate (3)	m³/h	228	331	440	788
Air flow rate at medium speed (AUTO mode)	m³/h	155	229	283	480
Air flow rate at minimum ventilation speed	m³/h	84	124	138	230
Maximum static pressure available	Pa	10	10	10	10
Electrical data
Supply voltage	V/ph/Hz	230/1/50	230/1/50	230/1/50	230/1/50
Electrical power consumption at max speed	W	19	20	29	27
Absorbed current at max allowed conditions	A	0,1	0,12	0,16	0,25
Electrical power consumption at min speed	W	5	5	5	7
Sound data
Sound power at max air flow	dB(A)	53	54	55	62
Sound pressure at max air flow rate (4)	dB(A)	40	41	42	51
Sound pressure at average air flow rate (4)	dB(A)	33	34	34	37
Sound pressure at minimum air flow rate (4)	dB(A)	25	25	26	27
Dimensions
Dimensions (hxwxd)	mm	335 x 927 x 128	335 x 1127 x 128	335 x 1327 x 128	335 x 1327 x 215
Weight	kg	14	16	19	24

(1) Water temperature 7/12°C, air temperature 27°C BS and 19°C BU according to EN 1397
(2) Water temperature 40/45°C, air temperature 20°C BS and 15°C BU according to EN 1397
(3) Air flow rate measured with clean filters
(4) Sound pressure measured at a distance of 1 meter according to ISO7779
