2. Hybrid Auriga Eco Kit

Hybrid systems

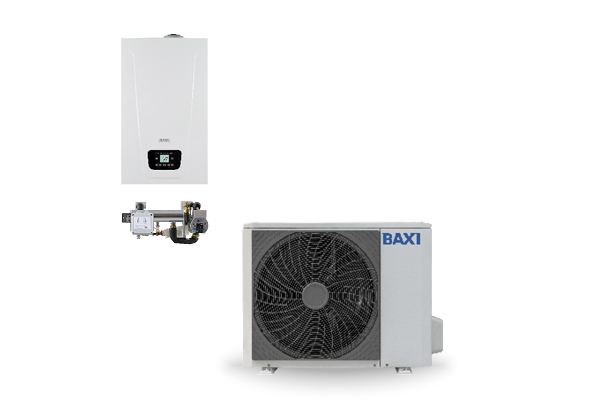

Hybrid Auriga Eco Kit

Kit for heat pump and boiler integration

Residential
Wall Hung

Designed for home renovations, this system integrates Luna Duo-tec E boilers with Auriga or Auriga Compact heat pumps to maximize your energy savings and system efficiency.



With the Hybrid Auriga Eco kit, the system easily heats water up to 65°C (70°C with Auriga Compact), provides domestic hot water, and supplies chilled water for summer cooling.



Its intelligent control logic constantly monitors outdoor weather and system demands, automatically switching to the most efficient energy source to guarantee comfort and lower bills in every season.

Find a Dealer
Download Area
Characteristics


  • Compact dimensions: only 180 mm in height (210 mm with Luna Duo-tec E lower closure extension kit)
  • No need of hydraulic fittings relocation
  • Magnetic sludge filter supplied AS STANDARD
  • Hydraulic separator for independent operation of the primary (heat pump) and secondary (system) circuits
  • High-head circulation pump for the secondary circuit
  • For Luna Duo-tec E (1.12,1.24, 1.28, 24, 28, 33) and Auriga Compact (6M, 8M, 10M) or Auriga (4M-A, 6M-A, 8M-A, 10M-A, 12M-A, 12T-A) heat pumps
  • Remote control supplied as standard with Auriga Compact (supplied as optional with Auriga)

Features

70°C

It can heat water up to 70°C (with Auriga Compact) and 65°C (with Auriga)

    Heating, cooling and DHW

    A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product. This appliance also allows the domestic hot water production

      Technical Specification

      Hybrid Auriga Eco Kit
      Heating circuit pressure (max) bar                       3
      Heating circuit pressure (min)bar0.5
      Hybrid module capacityl1
      Heating/cooling range°C25-70/7-30 (with Auriga Compact)
      Power supplyV/Hz
      		230/50*
      Rated electric powerW80*
      Dimensions (hxlxd)mm180x450x330
      Weightkg8
      Grade of protection against humidity (EN 60529)IPX5D

      * The hydraulic module is powered by the heat pump

      Download Area

      Leaflet

      Leaflet

      Product Documentation

      No documentation available.

      Get more details and information about Baxi products

      Find a Dealer

      Related Products

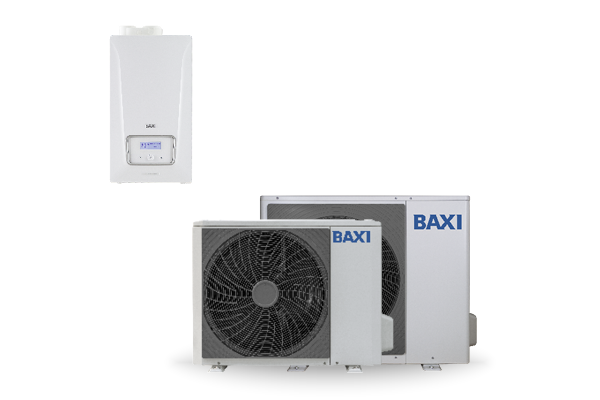

      Luna Hybrid Alya H
