Condensing boilers

Power 32

Heating only, combi+DHW storage, combi+storage+solar integration

Residential
Floor Standing

Power 32 is a all-in-one condensing boiler, featuring everything you need for great comfort in heating and domestic hot water production.

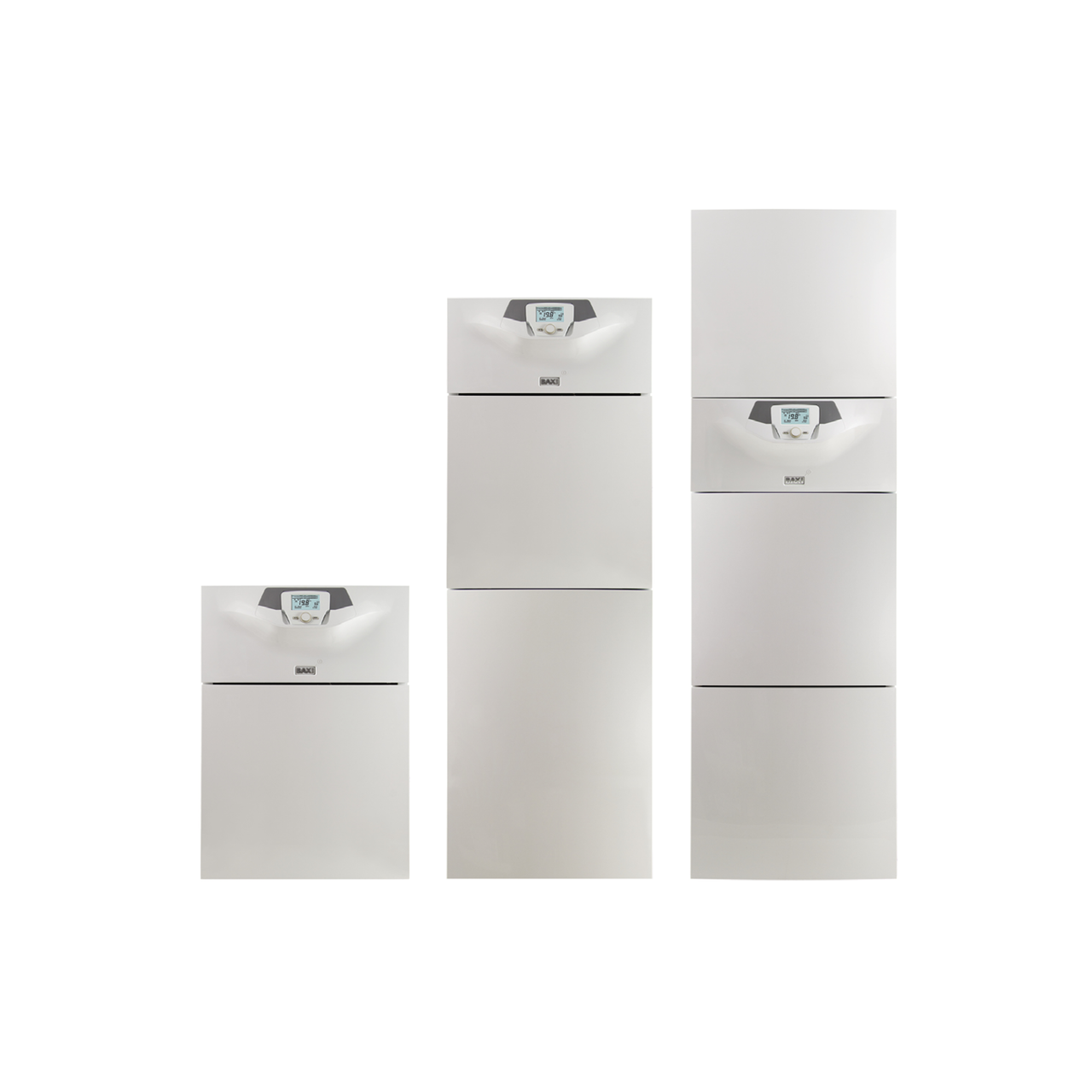

Power 32 range covers all installation requirements, being available in 3 versions: with a 220-litre storage tank for solar integration, with a 160-litre DHW tank or in heating only version.


The flexible installation (storage tank can be installed on both side or under the boiler) allows fitting in any room.

Characteristics


  • Models: 32, 1.32
  • Modulation up to 1:10 reduces on-off cycles for improved efficiency and savings
  • Automatic combustion control
  • 220-litre vitrified enamelled stratified steel cylinder with coil exchanger for solar integration (mod. Solar)
  • 160-litre vitrified enamelled steel cylinder with single coil exchanger (mod. Combi)
  • Mixing system (1 HT+1 LT) optional
  • Solar hydraulic group (pump, safety valve, flow rate regulator, air vent) and solar expansion vessel (mod. Solar)
  • DHW expansion vessel (mod. Combi and mod. Solar)
  • Built-in exchanger-tank recirculation

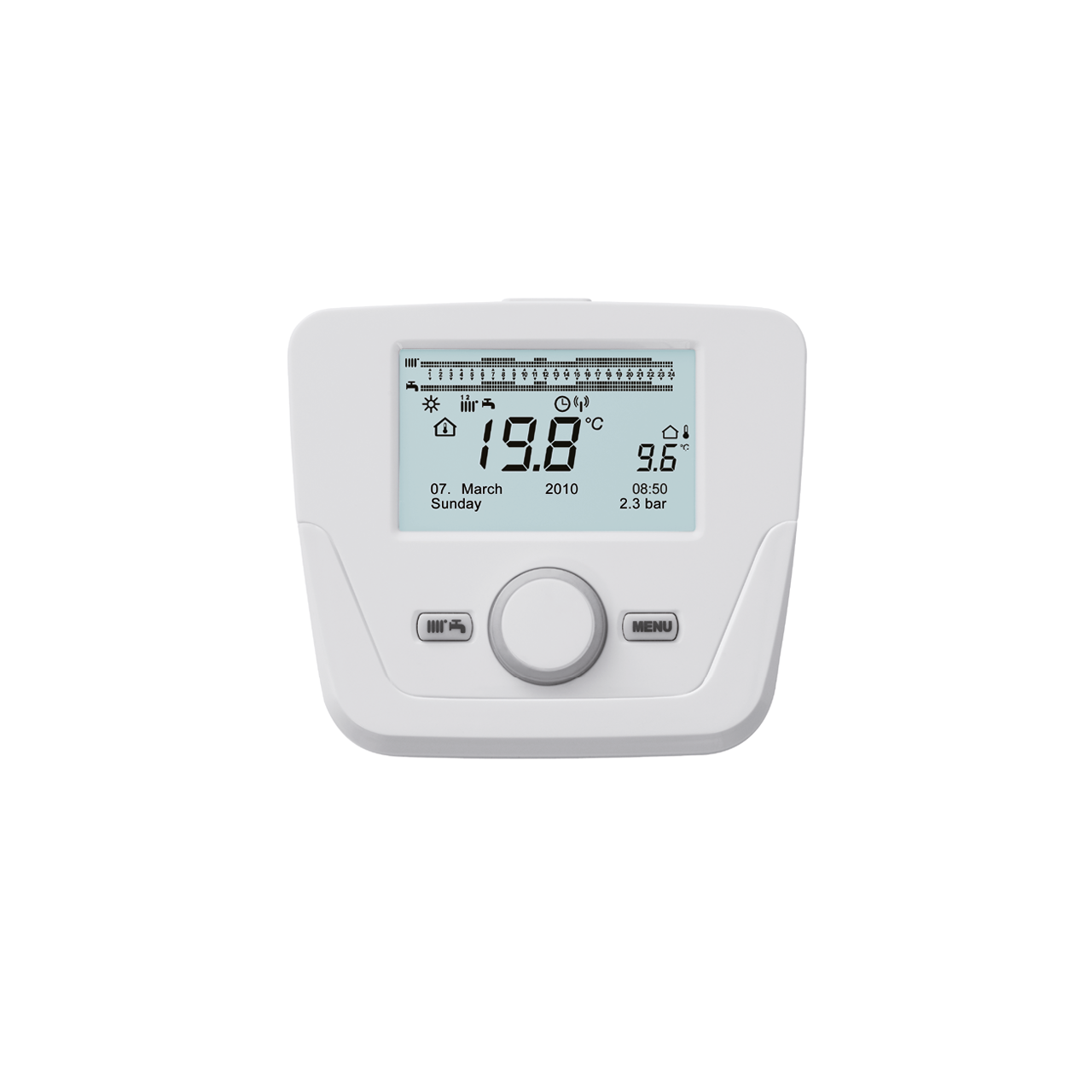

  • Removable control panel for wall-hung installation with wide text display
  • Outdoor sensor as standard

Features

Digital Ready

It can be connected to BaxiMAGO, the WI-FI smart modulating thermostat, and Baxi service App. You can have your boiler always under control

Hybrid Ready

It facilitates the integration of other heating sources, such as heat pumps and solar thermal, simplifying the climate management of your home

Gas Adaptive Control

It automatically detects the kind of gas and continuously adjusts the gas-to-air ratio for the highest quality combustion and savings

1:10 Modulation

Modulation up to 1:10 reduces on-off cycles for improved efficiency and savings
Show More
Show Less

Technical Specification

MODELS32
ErP data
Rated heat outputkW32
Useful heat output at rated heat output and high temperature regime(2) P4kW32
Useful heat output at 30% of rated heat output and low temperature setting(1) P1kW5,5
Space heating – Seasonal energy efficiency ƞs%92
Useful efficiency at rated heat output and high temperature setting(2) ƞ4%87,9
Useful efficiency at 30% of rated heat output and low temperature setting(1) ƞ1%97,3
Sound power level, indoors LWAdB56
Declared load profileXL*
Heat input/output
Rated heat input (Qn) for domestic hot waterkW-
Rated heat input (Qn) for heatingkW33
Rated heat output (Pn) for domestic hot waterkW-
Rated heat output (Pn) 80/60 °C for heatingkW32
Rated heat output (Pn) 50/30 °C for heatingkW34,8
Heating circuit
Temperature range for heating circuit°C25/80
Water capacity of expansion vessell18
Domestic water circuit
Temperature range for domestic water circuit°C35/60*
Domestic water production with ΔT = 25 °Cl/min
Domestic water production with ΔT = 35 °Cl/min12,33 Solar 220 / 13,16 Combi 160
Combustion
Diameter of separate discharge pipesmm80/80
Diameter of coaxial discharge pipesmm60/100
Nitrogen oxide emissions NOxmg/kWh28
Flue gas mass flow rate (max)kg/sec0,015
Flue gas mass flow rate (min)kg/sec0,002
Electrical characteristics
Power supply voltageV230
Power supply frequencyHz50
Rated electric powerW145
Dimensions
Humidity protection rating (EN 60529)IPX5D
Net weightkg62**
Dimensions (height/width/depth)mm918/600/720**

(1) Low temperature: return temperature (at boiler inlet) for condensing boilers 30°C, for low temperature boilers 37°C and for other heaters 50°C.
(2) High temperature setting means 60 °C return temperature at boiler inlet and 80 °C flow temperature at boiler outlet.
*Combi 160 and Solar 220
**Weight and dimensions refer to heating only model

Download Area

Installation, User and Service Manual

Installation, User and Service Manual

Data sheet

Data sheet
