Tank for DHW production from heat pump / heat pump and solar integration

Residential

Floor standing

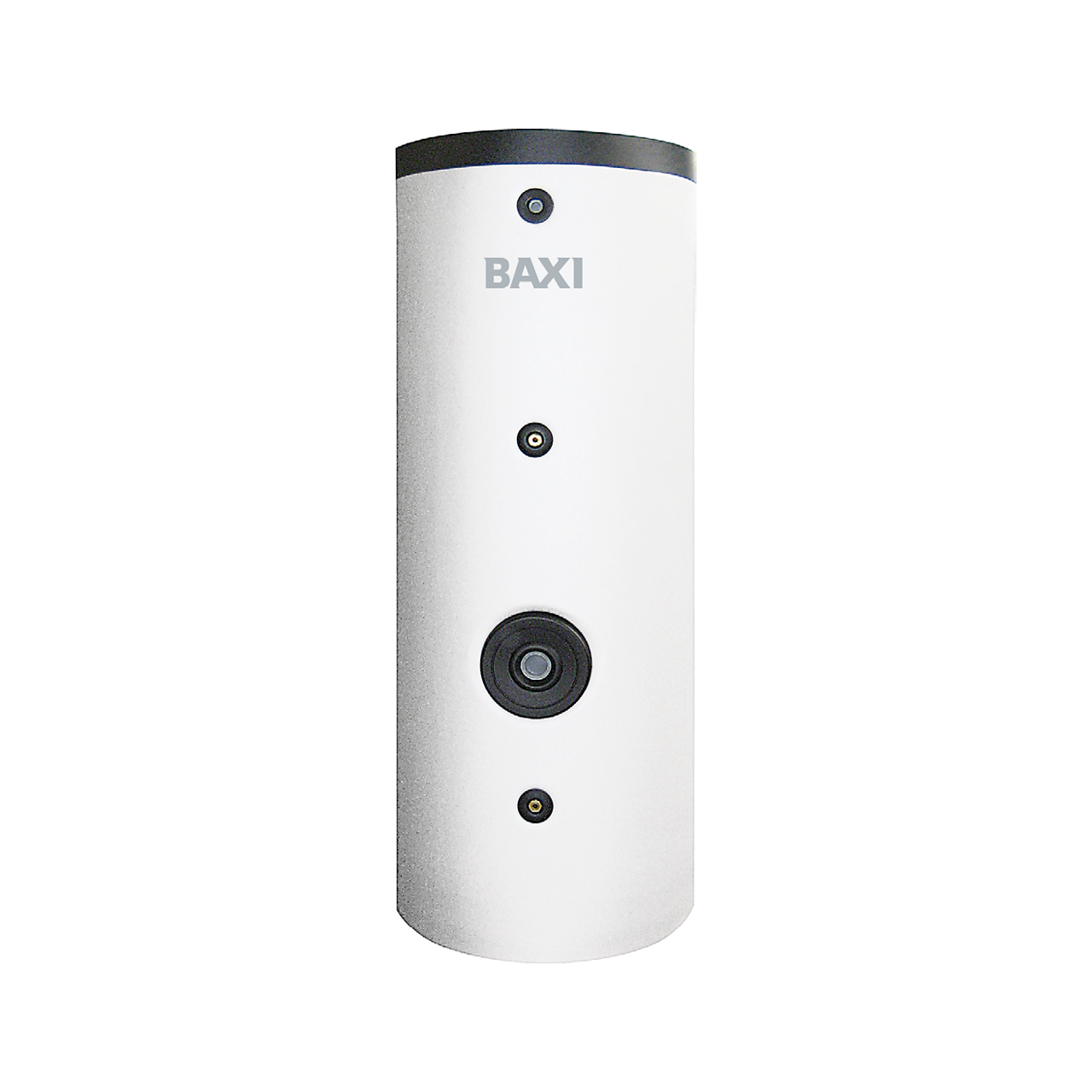

UBHP are single (SC) or double coil (DC) tanks dedicated to heat pump domestic hot water production. The double-coil models are for solar system applications.

UBHP are available in many sizes to suit all installation requirements.

Find a Dealer

Characteristics

Models: 182 SC, 260 SC/DC,455 DC, 470 SC, 702 SC/DC, 900 SC/DC, 1300 SC, 1390 DC, 1900 SC/DC
Single or double coil
Flexible, easy and clean installation
Enamelled vitrified steel tanks and magnesium anode to ensure protection against corrosion
70-mm rigid injected polyurethane insulation or 100-mm removable soft injected polyurethane, depending on the capacity

Features

Domestic hot water

This product allows the DHW production

Technical Specification

MODELS		UBHP 300 DC	UBHP 500 DC	UBHP 800 DC	UBHP 1000 DC	UBHP 1500 DC	UBHP 2000 DC	UBHP 200 SC	UBHP 300 SC	UBHP 500 SC	UBHP 800 SC	UBHP 1000 SC	UBHP 1500 SC	UBHP 2000 SC
Technical data
Capacity	l	263	455	702	900	1390	1900	182	263	470	702	900	1300	1900
Heat exchangers	n°	2	2	2	2	2	2	1	1	1	1	1	1	1
Coil exchange surface - upper	m²	3,7	5,2	5,2	6	6	12
Coil exchange surface - lower	m²	1,2	1,8	2,4	3,7	3,7	4,3	3	4	6	7	8	8	13
Coil heat exchange - upper (1)	kW	18,5	27,5	30	35	35	70
Coil heat exchange - lower (1)	kW	29	44	30	88	88	103	14	19	31	38	43	45	68
Dimensions (hxØ)	mm	1657 x 590	1705 x 740	1875 x 990	2205 x 990	2185 x 1200	2470 x 1300	1215 x 640	1615 x 640	1705 x 790	1875 x 990	2205 x 990	2085 x 1200	2470 x 1300
Weight	kg	125,9	173,4	246,1	275,6	369,3	571,7	85	119,9	166,7	217,8	247,6	344	544,7

(1) Upper coil: inlet coil temperature 60°C, outlet 50°C; inlet tank temperature 10°C, outlet 45°C - according to DIN 4708 / Lower coil: inlet coil temperature 80°C, outlet 60°C; inlet tank temperature 10°C, outlet 45°C - according to DIN 4708
