PBMC-i

Heat pumps
PBMC-i

Heat Pumps

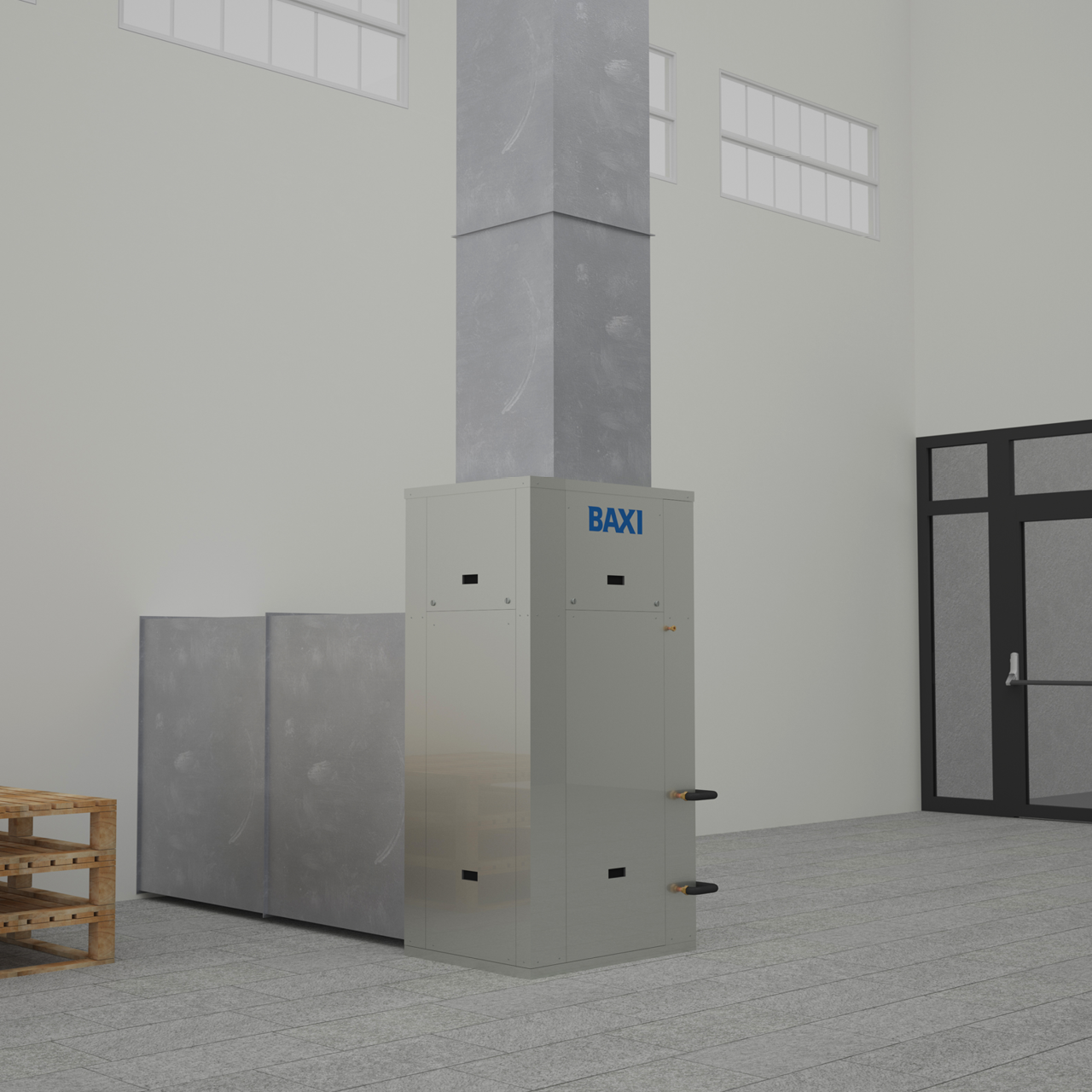

Commercial ducted air-source monobloc heat pumps

Commercial

Monobloc

PBMC-i ducted heat pumps are equipped with high modulation range inverter compressor.

Compact dimensions allow installation both in exhisting buildings and in new-build residential applications.

PBMC-i heat pumps are suitable for fan coils, underfloor heating, and low temperature high efficiency radiators.

Easy installation and service: all hydraulic components are supplied with the heat pump, helping saving time and space

Find a Dealer

Characteristics

Models: 18, 20, 25, 30, 35, 42
Compact dimensions and small footprint
Suitable for radiant terminal systems, fan coils and mixed systems
Intelligent defrosting via the monitoring of room temperature, refrigerant
temperature, water temperature and operating mode
Wide operation ratio DC inverter compressor
Modbus integration
R410A refrigerant

Features

Hybrid Ready

It facilitates the integration of other heating sources, such as heat pumps and solar thermal, simplifying the climate management of your home

Heating, cooling and DHW

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product. This appliance also allows the domestic hot water production

Technical Specification

MODELS		42	35	30	25	20	18
ErP data
Nominal heating capacity (1)	kW	41,80	35,70	30,00	28,80	21,5	17,90
COP (1)		3,83	3,80	3,53	3,97	3,98	3,89
Nominal cooling output (2)	kW	35,9	30,5	25,8	22,4	19	15,7
EER (2)		2,97	2,96	2,91	2,91	2,92	2,91
System and Performace
Refrigerant gas		R410A	R410A	R410A	R410A	R410A	R410A
Refrigerant gas load	kg	6	5,7	5,5	4,2	4,1	4,1
Sound power	dB(A)	80	79	78	76	75	74
System water content - min.	l	105	85	70	61	51	47
Plug-fan flow	m³/h	11700	12204	12204	6336	6336	6336
Dimensions
Empty weight	kg	374	359	353	217	215	213
Dimensions (hxwxd)	mm	1625x1490x800	1625x1490x800	1625x1490x800	1786,5x900x690	1786,5x900x690	1786,5x900x690
Electrical characteristics
Power supply	V/Ph/Hz	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50
