Condensing boilers

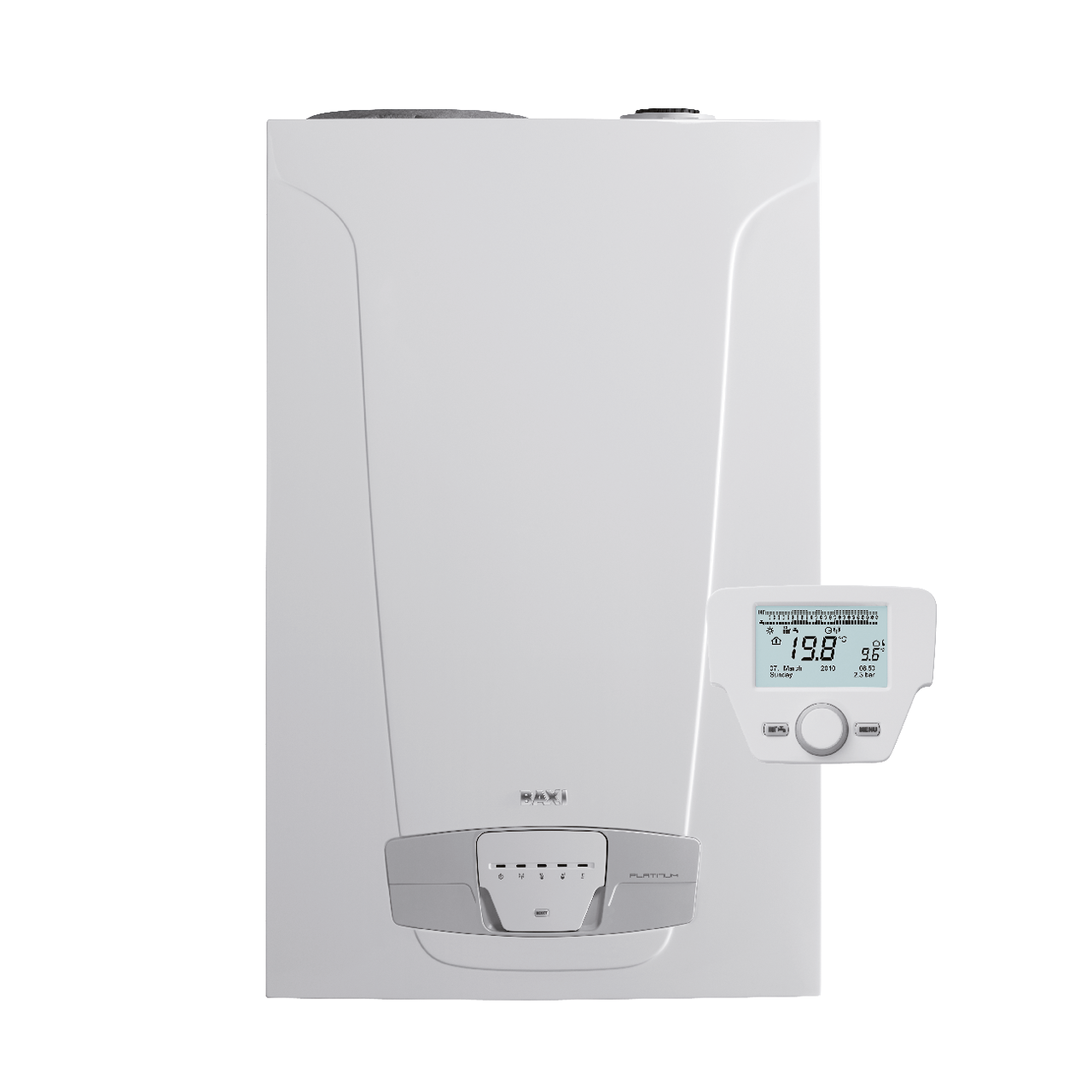

Nuvola Platinum+

Combi condensing boilers with DHW storage

Residential
Wall Hung

The 40-litres storage tank delivers hot water as soon as you turn on a tap.

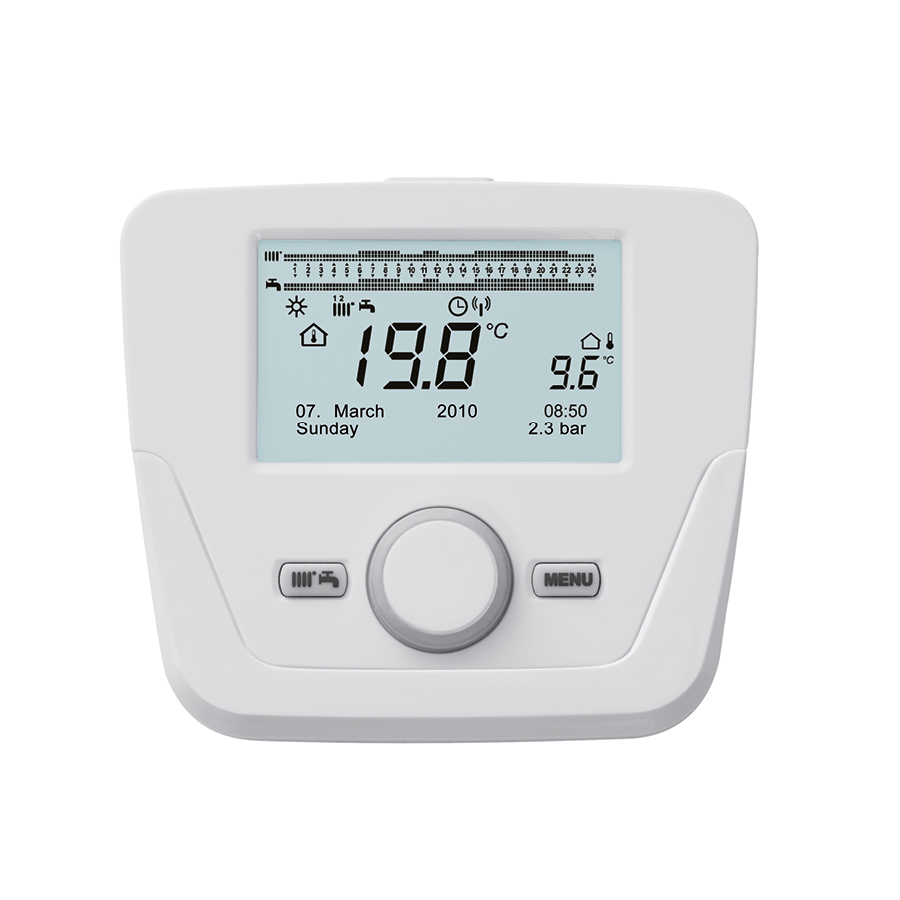

Remote digital control panel supplied with the boiler for an easy comfort management


The cutting-edge electronics have been designed to facilitate simple integration of renewable sources (solar systems, heat pumps, heat pump water heaters).

Find a Dealer
Download Area
Characteristics


  • Models: 24, 33
  • Modulation up to 1:10 reduces on-off cycles for improved efficiency and savings. Silent and durable, delivering stable comfort levels
  • Automatic combustion control maintains the highest level of efficiency
  • Up to 500 DHW lt in 30 minutes (∆T 30°C)
  • Stainless steel 40-litre tank

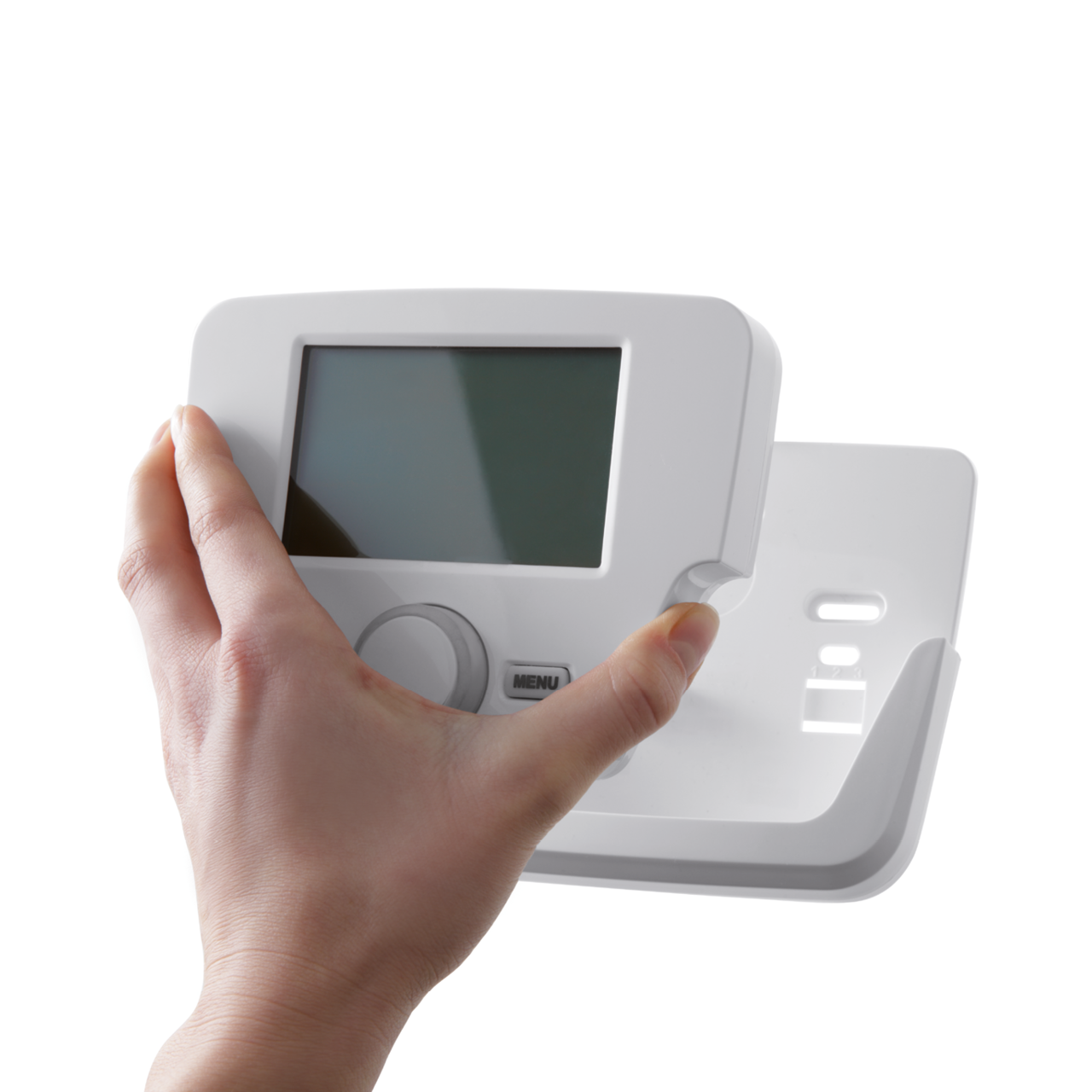

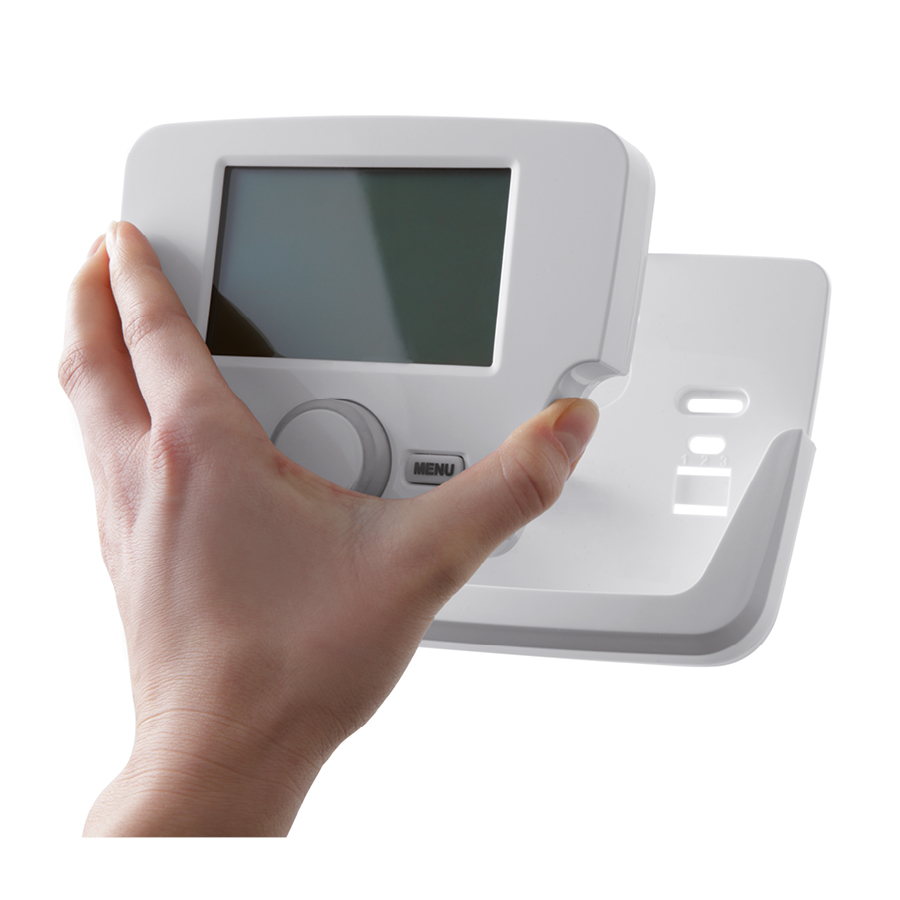

  • Removable control panel for wall-hung installation with wide text display as standard
  • Remote control Baxi Mago as optional
  • Built-in solar control

Features

Digital Ready

It can be connected to BaxiMAGO, the WI-FI smart modulating thermostat, and Baxi service App. You can have your boiler always under control

    Hybrid Ready

    It facilitates the integration of other heating sources, such as heat pumps and solar thermal, simplifying the climate management of your home

      Gas Adaptive Control

      It automatically detects the kind of gas and continuously adjusts the gas-to-air ratio for the highest quality combustion and savings

        1:10 Modulation

        Modulation up to 1:10 reduces on-off cycles for improved efficiency and savings
          Show More
          Show Less

          Technical Specification

          MODELS2433
          ErP data
          Rated heat outputkW1624
          Useful heat output at rated heat output and high temperature regime(2) P4kW1624
          Useful heat output at 30% of rated heat output and low temperature setting(1) P1kW5,48
          Space heating – Seasonal energy efficiency ƞs%9393
          Useful efficiency at rated heat output and high temperature setting(2) ƞ4%8887,9
          Useful efficiency at 30% of rated heat output and low temperature setting(1) ƞ1%89,198,1
          Sound power level, indoors LWAdB4953
          Declared load profileXLXL
          Heat input/output
          Rated heat input (Qn) for domestic hot waterkW24,734
          Rated heat input (Qn) for heatingkW16,524,7
          Rated heat output (Pn) for domestic hot waterkW2433
          Rated heat output (Pn) 80/60 °C for heatingkW1624
          Rated heat output (Pn) 50/30 °C for heatingkW17,426,1
          Heating circuit
          Temperature range for heating circuit°C25/8025/80
          Water capacity of expansion vessell7,57,5
          Domestic water circuit
          Temperature range for domestic water circuit°C35/6035/60
          Domestic water production with ΔT = 25 °Cl/min13,818,9
          Domestic water production with ΔT = 35 °Cl/min9,813,5
          Combustion
          Diameter of separate discharge pipesmm80/8080/80
          Diameter of coaxial discharge pipesmm60/10060/100
          Nitrogen oxide emissions NOxmg/kWh1826
          Flue gas mass flow rate (max)kg/sec0,0120,016
          Flue gas mass flow rate (min)kg/sec0,0010,002
          Electrical characteristics
          Power supply voltageV230230
          Power supply frequencyHz5050
          Rated electric powerW91105
          Dimensions
          Humidity protection rating (EN 60529)IPX5DX5D
          Net weightkg65,567,5
          Dimensions (height/width/depth)mm950/600/466950/600/466

          (1) Low temperature: return temperature (at boiler inlet) for condensing boilers 30°C, for low temperature boilers 37°C and for other heaters 50°C.
          (2) High temperature setting means 60 °C return temperature at boiler inlet and 80 °C flow temperature at boiler outlet.
